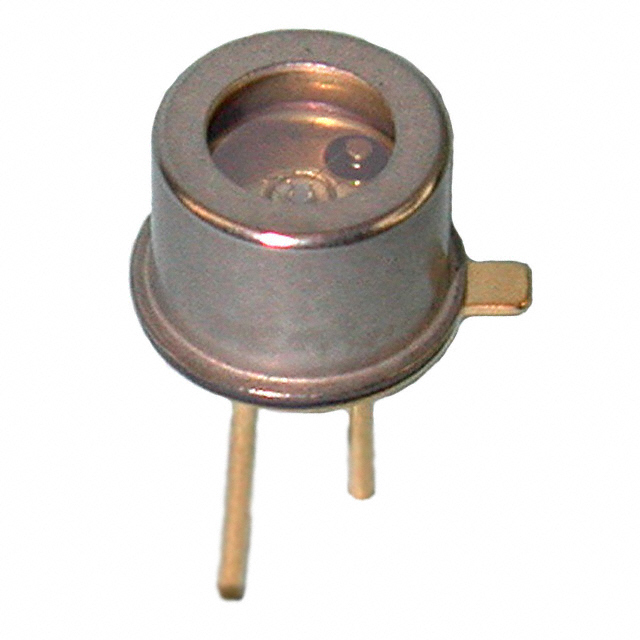

PDU-G101A
SENSOR PHOTODIODE 0.076MM TO46Manufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix PDU-G101A is a photodiode with a 10ns response time, designed for applications requiring precise light detection. This component features a small active area of 0.076mm² and a spectral range from 200nm to 365nm. The PDU-G101A exhibits a dark current of 50pA (typical) and a responsivity of 0.1 A/W at 350nm. It operates with a maximum reverse voltage of 5V and has a viewing angle of 61°. The photodiode is suitable for through-hole mounting and is supplied in tray packaging. Typical industries utilizing this component include analytical instrumentation and UV sensing systems. Operating temperature range is -30°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Wavelength | - |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -30°C ~ 85°C |
| Response Time | 10ns |
| Viewing Angle | 61° |
| Spectral Range | 200nm ~ 365nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.1 A/W @ 350nm |
| Active Area | 0.076mm² |
| Current - Dark (Typ) | 50pA |
| Voltage - DC Reverse (Vr) (Max) | 5 V |
