PDI-M301
SENSOR PHOTODIODE 900NM TO5Manufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More

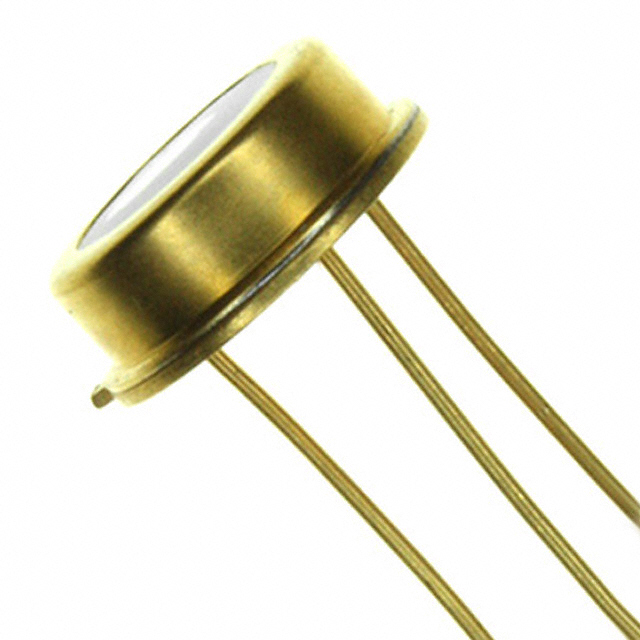

Advanced Photonix PDI-M301 is a silicon photodiode designed for precise light detection. This component features a spectral response optimized for the 900nm wavelength, with a broadband sensitivity from 400nm to 1150nm. The PDI-M301 exhibits a fast response time of 11ns and a typical dark current of 9nA, enabling accurate signal acquisition in demanding applications. Its responsivity is rated at 0.45 A/W at 1060nm, and it supports a reverse voltage up to 75V. Packaged in a TO-205AA, TO-5-3 metal can with a through-hole mounting type and an 84° viewing angle, this photodiode is suitable for use in industrial automation, medical instrumentation, and optical sensing systems. The active area measures 5mm².
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-205AA, TO-5-3 Metal Can |
| Wavelength | 900nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 11ns |
| Viewing Angle | 84° |
| Spectral Range | 400nm ~ 1150nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.45 A/W @ 1060nm |
| Active Area | 5mm² |
| Current - Dark (Typ) | 9nA |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
