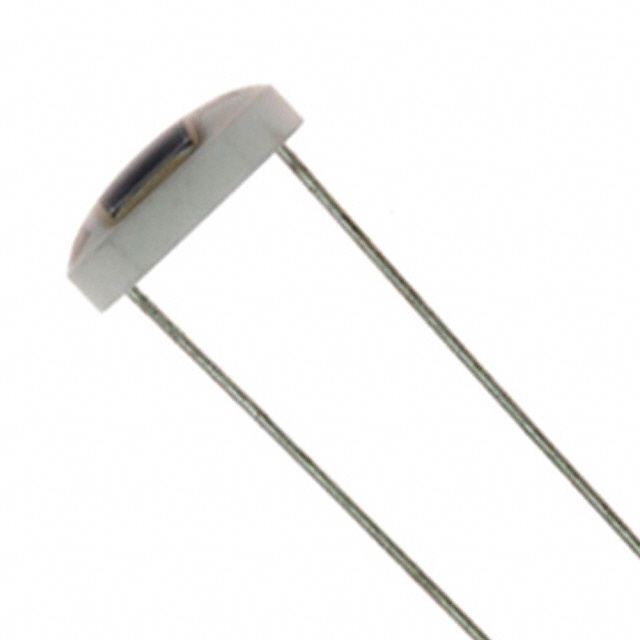

PDB-V113
SENSOR PHOTODIODE 950NM RADIALManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix PDB-V113 is a high-performance PIN photodiode designed for sensitive light detection applications. This radial-packaged component features a 120° wide viewing angle and a spectral range of 350nm to 1100nm, with peak sensitivity at 950nm. The PDB-V113 offers a fast response time of 13ns and a low dark current of 300pA typically, enabling precise signal acquisition. With a maximum reverse voltage rating of 75V and an active area of 8.24mm², it is suitable for demanding optical sensing in industrial automation, medical equipment, and general lighting control systems. The through-hole mounting facilitates straightforward integration into PCB designs.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 90°C |
| Response Time | 13ns |
| Viewing Angle | 120° |
| Spectral Range | 350nm ~ 1100nm |
| Color - Enhanced | Blue |
| Responsivity @ nm | 0.17 A/W @ 450nm |
| Active Area | 8.24mm² |
| Current - Dark (Typ) | 300pA |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
