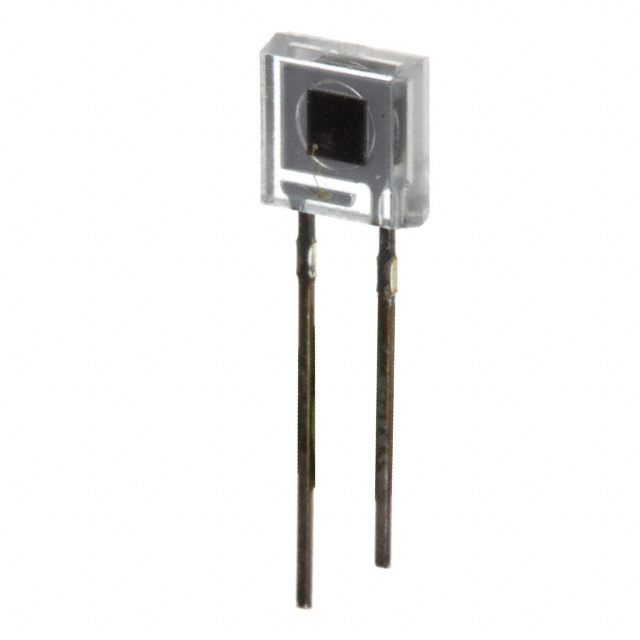

PDB-C170
SENSOR PHOTODIODE 950NM RADIALManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix PDB-C170 is a pin photodiode designed for optical sensing applications. This component features a spectral range of 350nm to 1100nm, with peak sensitivity at 950nm. The radial package with a 120° viewing angle and through-hole mounting facilitates integration into various PCB designs. Key electrical characteristics include a dark current of 200pA (typical), a reverse voltage rating of 100V, and a fast response time of 100ns. The active area is 2.17mm². Applications include sensor systems in industrial automation, medical equipment, and security surveillance. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 80°C |
| Response Time | 100ns |
| Viewing Angle | 120° |
| Spectral Range | 350nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 2.17mm² |
| Current - Dark (Typ) | 200pA |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
Request a Quote
