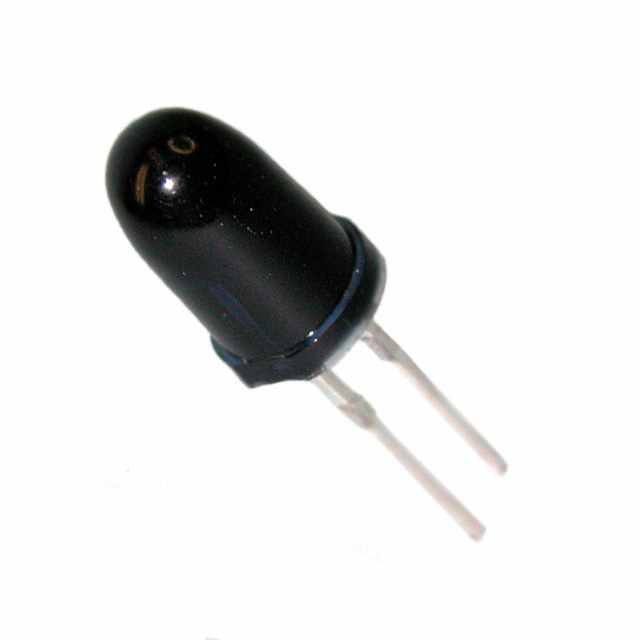

PDB-C142F
SENSOR PHOTODIODE 660NM RADIALManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix PDB-C142F is a silicon PIN photodiode optimized for 660nm light detection. This radial-packaged component features a 5mm diameter (T 1 3/4) through-hole mount and a 40° viewing angle. With a typical dark current of 5nA and a 50ns response time, it is suitable for applications requiring precise optical sensing. The photodiode operates over a spectral range of 700nm to 1100nm and supports a maximum reverse voltage of 50V. The active area is 4.12mm². This component finds application in areas such as industrial automation, medical instrumentation, and optical communication systems where accurate and fast light detection is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 660nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 80°C |
| Response Time | 50ns |
| Viewing Angle | 40° |
| Spectral Range | 700nm ~ 1100nm |
| Color - Enhanced | Blue |
| Responsivity @ nm | - |
| Active Area | 4.12mm² |
| Current - Dark (Typ) | 5nA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
