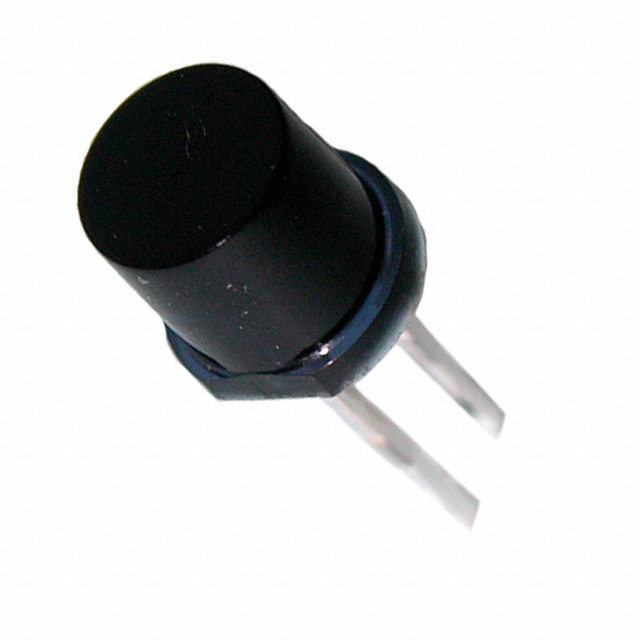

PDB-C139F
SENSOR PHOTODIODE 950NM RADIALManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix PDB-C139F is a PIN photodiode designed for applications requiring sensitivity in the near-infrared spectrum. This component features a spectral range of 700nm to 1100nm, with peak sensitivity at 950nm. The PDB-C139F offers a fast response time of 50ns, making it suitable for high-speed sensing and optical communication systems. Its radial package, with a 5mm diameter (T 1 3/4), facilitates through-hole mounting. The active area is 4.12mm², and the device has a reverse voltage rating of 50V. Typical dark current is 5nA, and it operates within a temperature range of -40°C to 80°C. The viewing angle is 59°. Applications include industrial automation, medical equipment, and optical sensing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 80°C |
| Response Time | 50ns |
| Viewing Angle | 59° |
| Spectral Range | 700nm ~ 1100nm |
| Color - Enhanced | Blue |
| Responsivity @ nm | - |
| Active Area | 4.12mm² |
| Current - Dark (Typ) | 5nA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
