630-70-72-500
SENSOR PHOTODIODE 675NMManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More

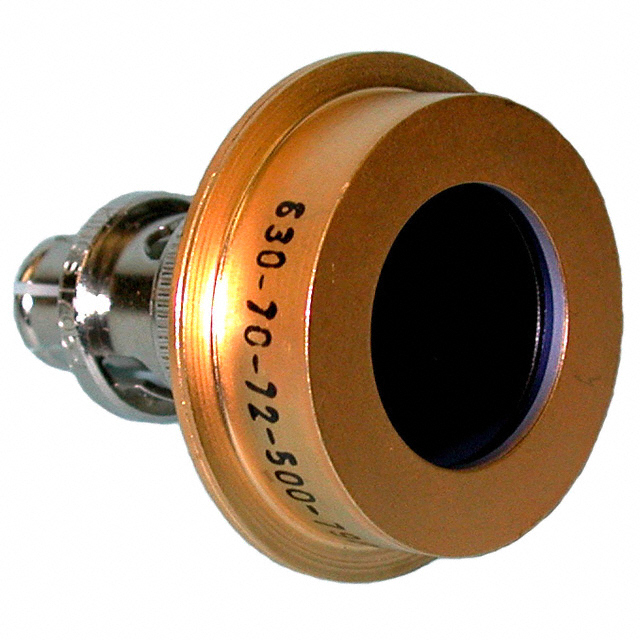

Advanced Photonix PIN Photodiode, Part Number 630-70-72-500. This component is a high-speed silicon photodiode optimized for 675nm operation, featuring a 15ns response time. The active area measures 201.06mm², and it exhibits a dark current of 280nA typical. Designed for robust performance, it operates within a spectral range of 300nm to 1000nm with a responsivity of 100 A/W at 750nm. This photodiode supports a maximum reverse voltage of 2000V. It is suitable for chassis mount applications and is supplied in bulk packaging. The operating temperature range is -55°C to 40°C. This component is commonly utilized in industrial, medical, and scientific instrumentation.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 675nm |
| Mounting Type | Chassis Mount |
| Diode Type | Avalanche |
| Operating Temperature | -55°C ~ 40°C |
| Response Time | 15ns |
| Viewing Angle | - |
| Spectral Range | 300nm ~ 1000nm |
| Color - Enhanced | Red |
| Responsivity @ nm | 100 A/W @ 750nm |
| Active Area | 201.06mm² |
| Current - Dark (Typ) | 280nA |
| Voltage - DC Reverse (Vr) (Max) | 2000 V |
