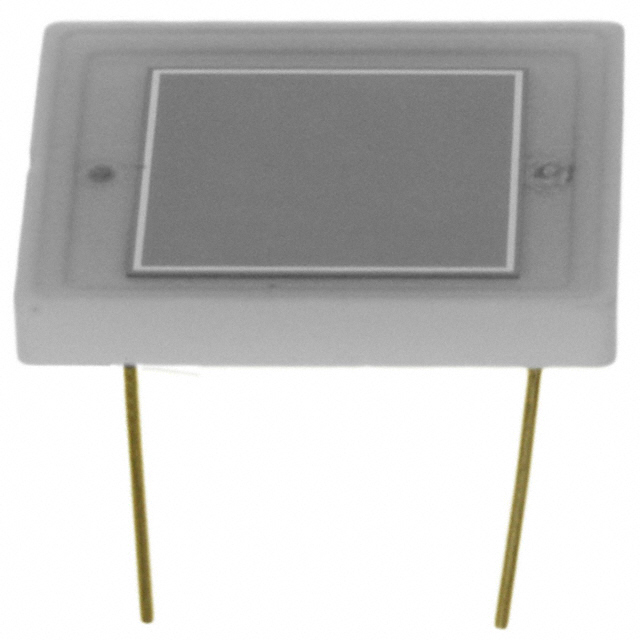

445-11-21-305
SENSOR PHOTODIODE 660NM CERMManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix 445-11-21-305 is a photodiode featuring a 660nm peak sensitivity, ideal for applications requiring precise detection in the red spectrum. This Pin photodiode boasts a rapid 13ns response time and a wide 120° viewing angle, facilitating efficient light capture in diverse environments. The component offers a 75V maximum reverse voltage and a low 30nA dark current for reliable operation. Its 100mm² active area and spectral range from 350nm to 1100nm make it suitable for industrial automation, medical instrumentation, and optical sensing systems. Supplied in bulk packaging with a through-hole mounting type, the 445-11-21-305 is designed for robust integration into various electronic assemblies.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 660nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -20°C ~ 75°C |
| Response Time | 13ns |
| Viewing Angle | 120° |
| Spectral Range | 350nm ~ 1100nm |
| Color - Enhanced | Red |
| Responsivity @ nm | 0.55 A/W @ 900nm |
| Active Area | 100mm² |
| Current - Dark (Typ) | 30nA |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
