394-70-72-591

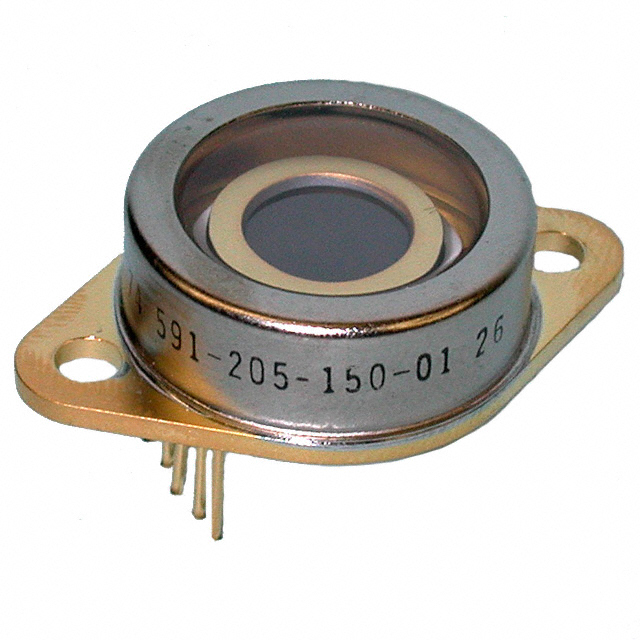

SENSOR PHOTODIODE 675NM TO3Manufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix 394-70-72-591 is a high-speed avalanche photodiode designed for optical sensing applications. Featuring a spectral range of 350nm to 1050nm and a peak responsivity of 135 A/W at 750nm, this component is optimized for 675nm operation with a fast 12ns response time. The 78.54mm² active area and 2000V reverse voltage capability make it suitable for demanding environments. With a low dark current of 15nA at typical operating conditions (1°C ~ 40°C) and through-hole mounting, it is well-suited for use in industrial automation, medical instrumentation, and optical communication systems. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 675nm |
| Mounting Type | Through Hole |
| Diode Type | Avalanche |
| Operating Temperature | 1°C ~ 40°C |
| Response Time | 12ns |
| Viewing Angle | - |
| Spectral Range | 350nm ~ 1050nm |
| Color - Enhanced | - |
| Responsivity @ nm | 135 A/W @ 750nm |
| Active Area | 78.54mm² |
| Current - Dark (Typ) | 15nA |
| Voltage - DC Reverse (Vr) (Max) | 2000 V |
