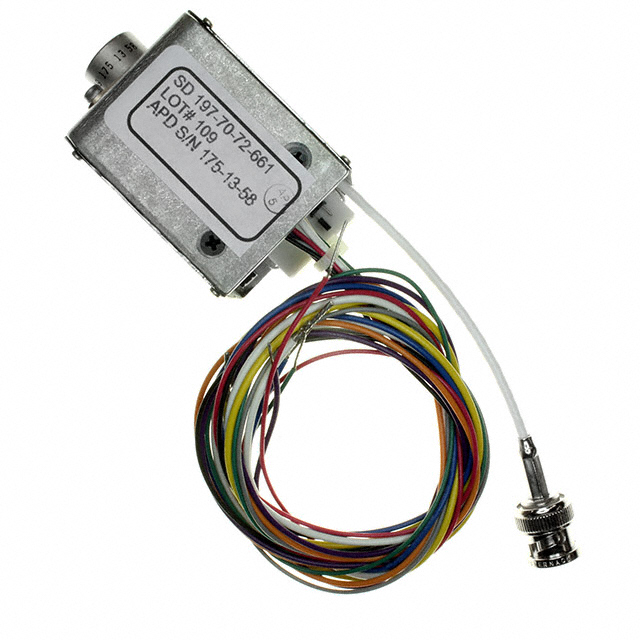

197-70-72-661
SENSOR PHOTODIODE AVAL 5MM MODManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix offers the 197-70-72-661, an avalanche photodiode designed for demanding applications. Featuring a significant active area of 19.63mm², this component is optimized for detecting light across a spectral range of 350nm to 1050nm, with enhanced sensitivity in the red spectrum. The 197-70-72-661 is suitable for chassis mounting, ensuring robust integration into various systems. Its avalanche diode type provides high gain and fast response characteristics, making it a critical component in optical sensing, medical instrumentation, and industrial automation. The operational temperature range is 0°C to 40°C, and it is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | - |
| Mounting Type | Chassis Mount |
| Diode Type | Avalanche |
| Operating Temperature | 0°C ~ 40°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 350nm ~ 1050nm |
| Color - Enhanced | Red |
| Responsivity @ nm | - |
| Active Area | 19.63mm² |
| Current - Dark (Typ) | - |
