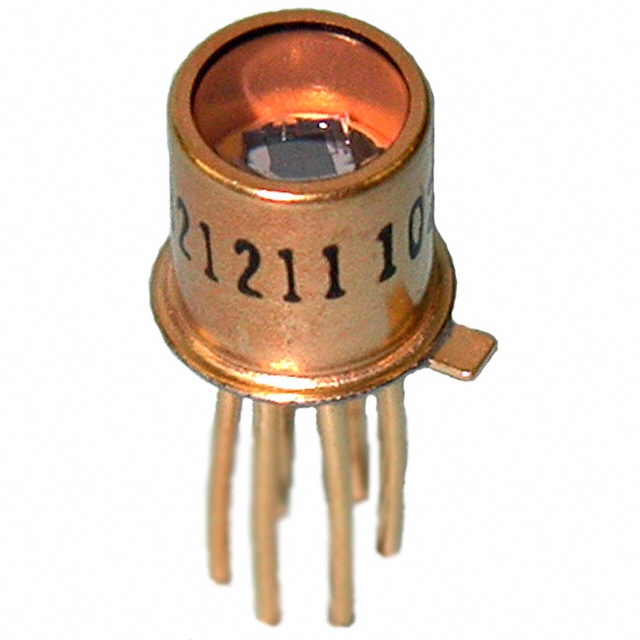

055-23-21-211
SENSOR PHOTODIODE 660NM TO18Manufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix 055-23-21-211 is a photodiode designed for high-speed optical detection. This component features a peak sensitivity at 660nm, with a spectral range extending from 350nm to 1100nm. The 055-23-21-211 offers a fast response time of 13ns, enabling efficient signal processing in demanding applications. With a dark current of 100pA and a maximum reverse voltage of 50V, it provides stable performance. The photodiode has a viewing angle of 67° and an active area of 0.25mm². This through-hole mounted component is suitable for industrial automation, medical devices, and optical sensing systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 660nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | 13ns |
| Viewing Angle | 67° |
| Spectral Range | 350nm ~ 1100nm |
| Color - Enhanced | Red |
| Responsivity @ nm | 0.55 A/W @ 900nm |
| Active Area | 0.25mm² (x4) |
| Current - Dark (Typ) | 100pA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
