012-70-62-541

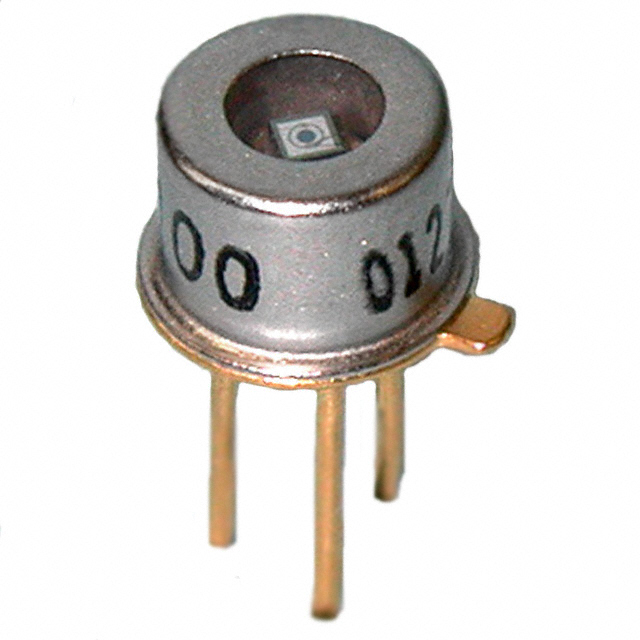

SENSOR PHOTODIODE TO46-3Manufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix 012-70-62-541 Photodiode. This TO-46-3 package photodiode features a 700ps response time, making it suitable for high-speed applications. The metal can package with a lens top offers a clear optical path. With a spectral range of 400nm to 1100nm and a responsivity of 47 A/W at 830nm, this device is optimized for detection across a broad spectrum. The photodiode exhibits a low dark current of 2nA typical and can withstand a maximum reverse voltage of 280V. Its through-hole mounting type and operating temperature range of -40°C to 85°C ensure robustness in demanding environments. This component is commonly utilized in test and measurement equipment, industrial automation, and optical sensing systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-3 Lens Top Metal Can |
| Wavelength | - |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | 700ps |
| Viewing Angle | - |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | 47 A/W @ 830nm |
| Active Area | 0.30mm Dia |
| Current - Dark (Typ) | 2nA |
| Voltage - DC Reverse (Vr) (Max) | 280 V |
