012-11-41-211

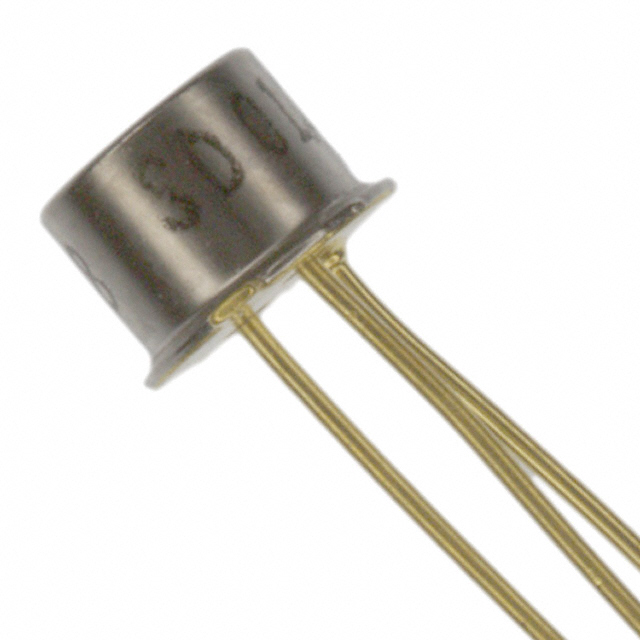

SENSOR PHOTODIODE TO46-3Manufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix photodiode, part number 012-11-41-211, is a high-speed silicon photodetector housed in a TO-46-3 metal can package with a lens top. Featuring a fast response time of 1.15ns and a wide spectral range from 800nm to 1700nm, this component offers a responsivity of 0.92 A/W at 1310nm. The dark current is typically 1nA, and it supports a reverse voltage up to 75V. With a viewing angle of 88° and an active area diameter of 0.30mm, it is designed for through-hole mounting. This photodiode is suitable for telecommunications, fiber optic sensing, and medical instrumentation applications where precise light detection is critical. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-3 Lens Top Metal Can |
| Wavelength | - |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | 1.15ns |
| Viewing Angle | 88° |
| Spectral Range | 800nm ~ 1700nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.92 A/W @ 1310nm |
| Active Area | 0.30mm Dia |
| Current - Dark (Typ) | 1nA |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
