002-151-001
SENSOR PHOTODIOD 800-1700NM 1206Manufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More

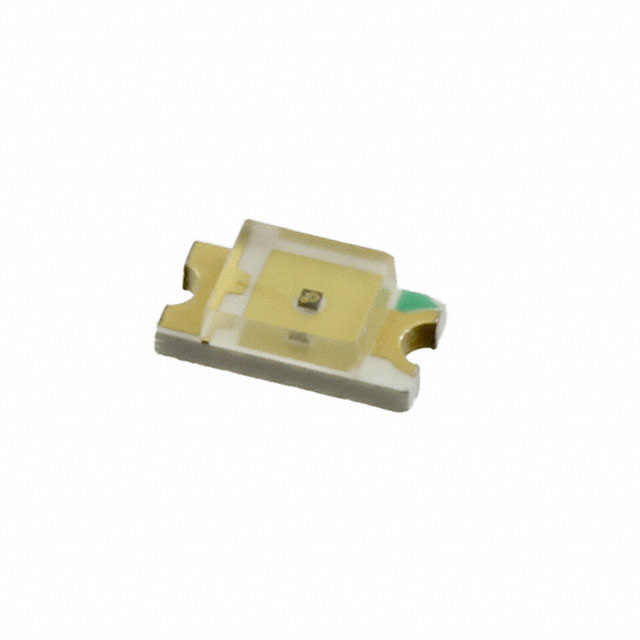

Advanced Photonix 002-151-001 is a surface-mount photodiode designed for operation within the 800nm to 1700nm spectral range. This component exhibits a typical dark current of 750pA and supports a maximum reverse DC voltage of 50V. The photodiode is supplied in Tape & Reel (TR) packaging and operates across an extended temperature range of -40°C to 125°C. Its suitability for the 800-1700nm range makes it applicable in optical communication systems, fiber optic sensing, and infrared detection applications.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Wavelength | - |
| Mounting Type | Surface Mount |
| Diode Type | - |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 800nm ~ 1700nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | - |
| Current - Dark (Typ) | 750pA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
