PDI-E840
EMITTER IR VIS MULTI-NM MET CERManufacturer: Advanced Photonix
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Advanced Photonix PDI-E840 is a multi-wavelength LED emitter designed for reliable performance across infrared (IR) and visible spectrums. This component features distinct emission wavelengths at 940nm, 905nm, and 660nm, with corresponding typical forward voltages of 1.3V, 1.2V, and 1.8V respectively, all at a maximum DC forward current of 30mA. Packaged in a metallized ceramic housing for enhanced thermal management and durability, the PDI-E840 utilizes a surface mount configuration with a top-view orientation. Its operating temperature range of -40°C to 80°C (TA) makes it suitable for demanding applications within the industrial automation, security, and medical device sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Metallized Ceramic |
| Wavelength | 940nm, 905nm, 660nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR), Visible |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 80°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V, 1.2V, 1.8V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 30mA |
| Radiant Intensity (Ie) Min @ If | - |
Request a Quote
Clients Also Buy

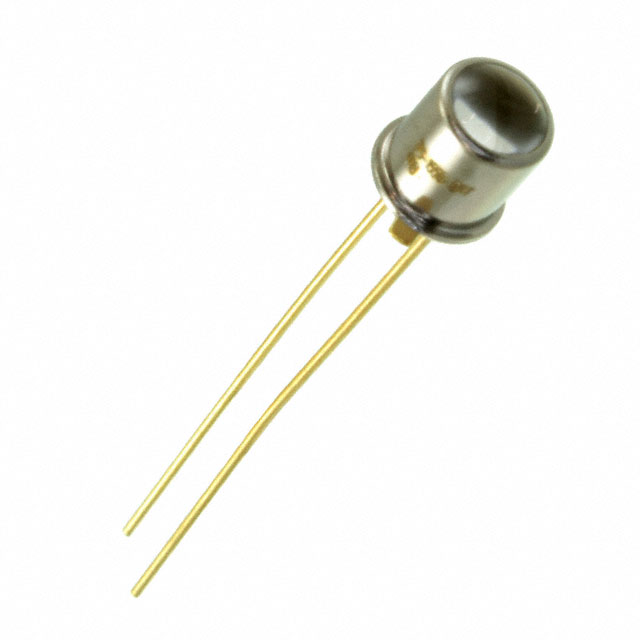

LS-1300-015
1300NM AIGAAS LED ASSY

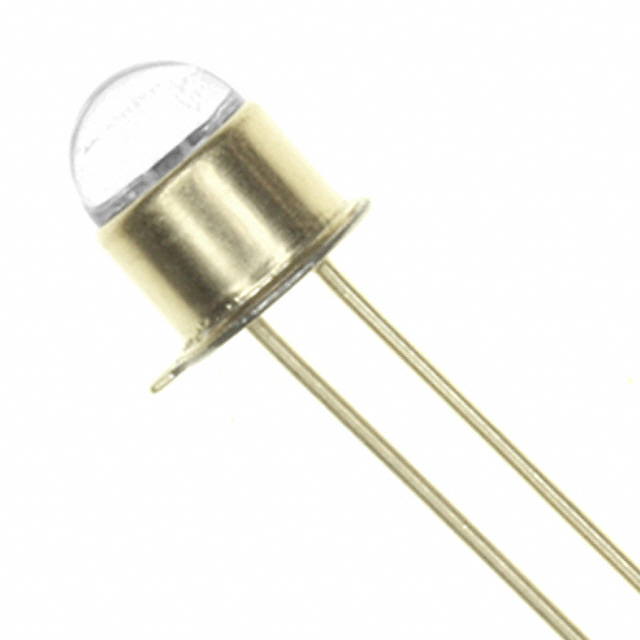

PDI-E802
EMITTER IR 880NM 100MA TO-46

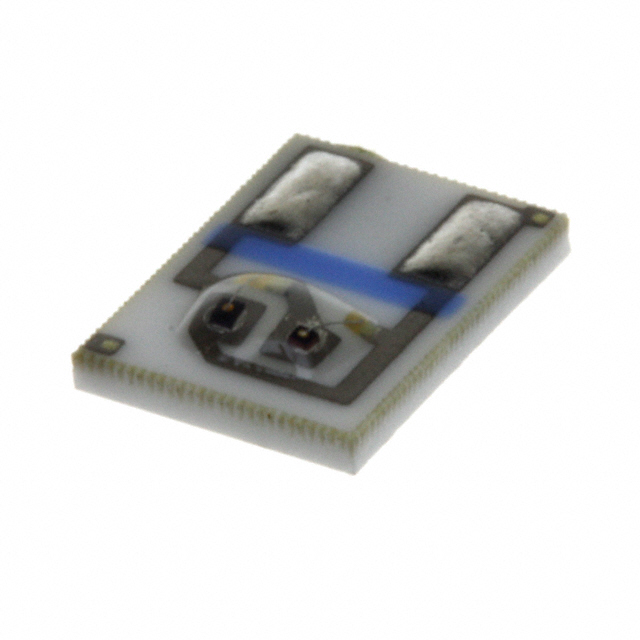

PDI-E838
