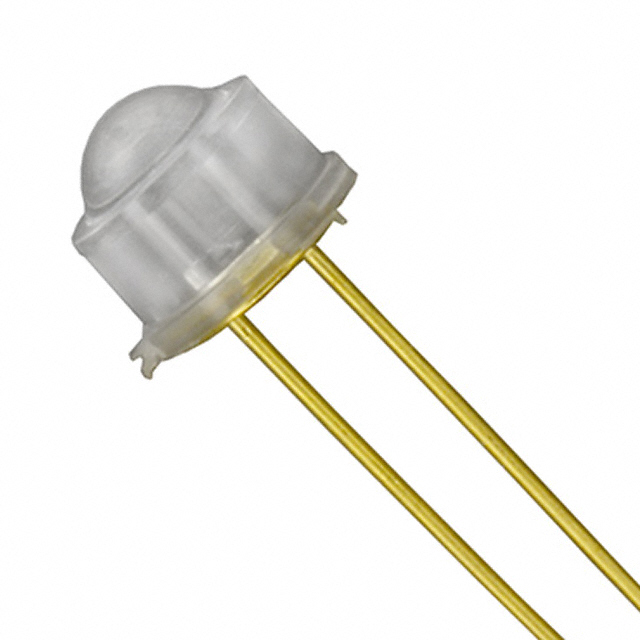

PDI-E825
EMITTER IR 850NM 100MA TO-46Manufacturer: Advanced Photonix
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Advanced Photonix PDI-E825 is an infrared emitter designed for high-performance applications. This TO-46-2 packaged component operates at a wavelength of 850nm and features a maximum DC forward current of 100mA with a typical forward voltage of 1.7V. Its through-hole mounting type and TO-46-2 package ensure robust integration into various electronic assemblies. Operating within a temperature range of -55°C to 125°C (TA), the PDI-E825 is suitable for demanding environments. This infrared emitter finds application in sensing, security systems, and optical communication modules. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
