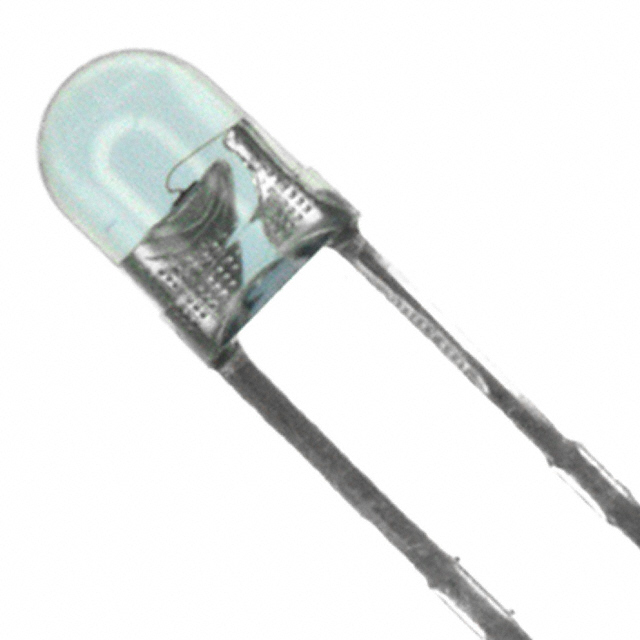

PDI-E808-A
EMITTER IR 880NM 100MA T 1 3/4Manufacturer: Advanced Photonix
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Advanced Photonix PDI-E808-A is an infrared (IR) emitter with a peak wavelength of 880nm. This through-hole component is packaged in a T 1 3/4 case and offers a typical forward voltage of 1.5V at a maximum forward current of 100mA. Designed for operation across a wide temperature range from -65°C to 125°C (TA), this emitter is suitable for applications in industrial automation, security systems, and optical sensing. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | T 1 3/4 |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -65°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | - |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | - |
