ALD110800SCL
MOSFET 4N-CH 10.6V 16SOICManufacturer: Advanced Linear Devices Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 10.6V 500mW Surface Mount 16-SOIC
Additional Information
Series: EPAD®, Zero Threshold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 4 N-Channel, Matched Pair |
| Operating Temperature | 0°C ~ 70°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 500mW |
| Drain to Source Voltage (Vdss) | 10.6V |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2.5pF @ 5V |
| Rds On (Max) @ Id, Vgs | 500Ohm @ 4V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 20mV @ 1µA |
| Supplier Device Package | 16-SOIC |
Request a Quote
Clients Also Buy

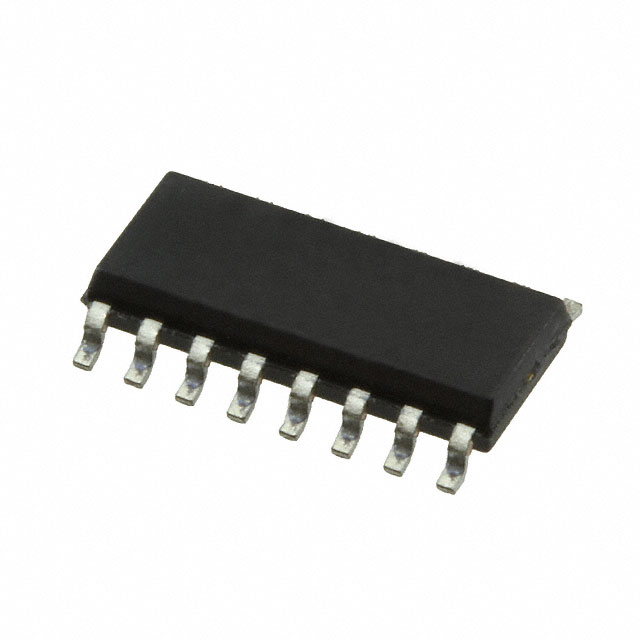

ALD310708SCL
MOSFET 4 P-CH 8V 16SOIC
ALD110800ASCL
MOSFET 4N-CH 10.6V 16SOIC

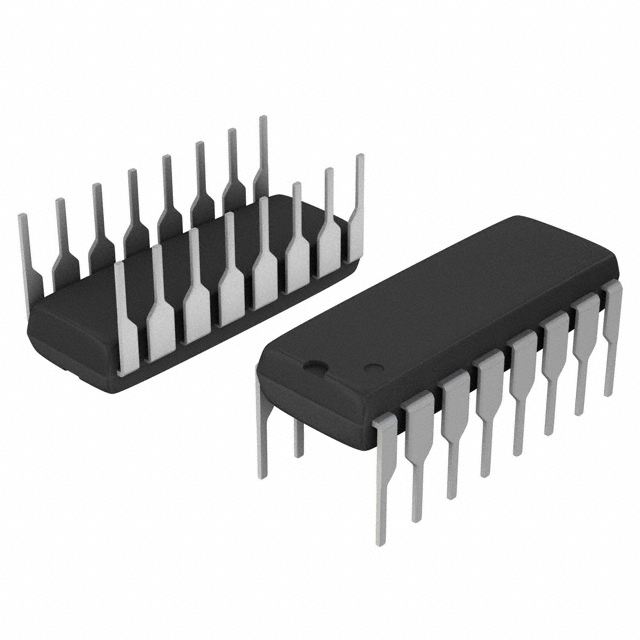

ALD210800APCL
