1399
DISP LED 7SEG 1"" SGL RGB 25DIPManufacturer: Adafruit Industries LLC
Categories: LED Character and Numeric
Quality Control: Learn More
Adafruit Industries LLC presents a single-digit, 1-inch, 7-segment RGB LED display module, part number 1399. This 25-DIP packaged component features a common anode configuration, enabling independent control of Red, Green, and Blue segments for a wide spectrum of color output. The module exhibits typical forward voltages of 2.1V for Red, 3.5V for Green, and 3.4V for Blue, with a per-segment current rating of 20mA for each color. Luminous intensity specifications are 244mcd for Red, 552mcd for Green, and 100mcd for Blue. The physical dimensions of the module are 1.398 inches high by 0.945 inches wide by 0.343 inches deep. This display is suitable for applications in industrial automation, signage, and consumer electronics where dynamic color and large-format numeric or alpha-numeric indication is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 25-DIP Module |
| Color | Red, Green, Blue (RGB) |
| Display Type | 7-Segment |
| Size / Dimension | 1.398"" H x 0.945"" W x 0.343"" D (35.50mm x 24.00mm x 8.70mm) |
| Number of Characters | 1 |
| Millicandela Rating | 244mcd Red, 552mcd Green, 100mcd Blue |
| Common Pin | Common Anode |
| Digit/Alpha Size | 1.00"" (25.40mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.5V Green, 3.4V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Wavelength - Peak | 616nm Red, 523nm Green, 468nm Blue |
| Power Dissipation (Max) | 150mW |
Request a Quote
Clients Also Buy

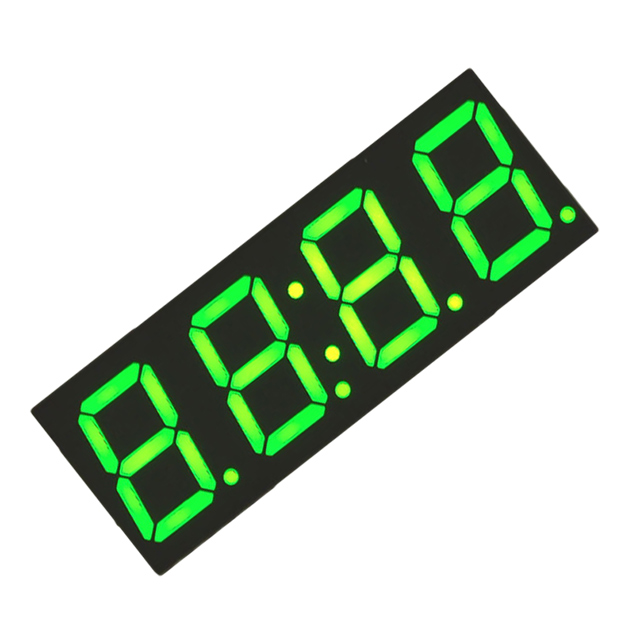

813
