1298
SOIL TEMPERATURE/MOISTURE SENSORManufacturer: Adafruit Industries LLC
Categories: Humidity, Moisture Sensors
Quality Control: Learn More
Adafruit Industries LLC 1298 is a soil temperature and moisture sensor featuring an I2C interface for data communication. This component offers a humidity measurement range of 0 to 100% RH with an accuracy of ±4.5% RH. It operates across a wide temperature range from -40°C to 120°C. The sensor provides 12-bit output resolution and a response time of 8 seconds for humidity readings. Power is supplied via a voltage range of 2.4V to 5.5V. This device is suitable for applications in environmental monitoring and agricultural instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Probe |
| Output Type | I2C |
| Sensitivity | - |
| Mounting Type | User Defined |
| Output | 12b |
| Accuracy | ±4.5% RH |
| Operating Temperature | -40°C ~ 120°C |
| Voltage - Supply | 2.4V ~ 5.5V |
| Sensor Type | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH |
| Supplier Device Package | - |
| Response Time | 8 s |
Request a Quote
Clients Also Buy

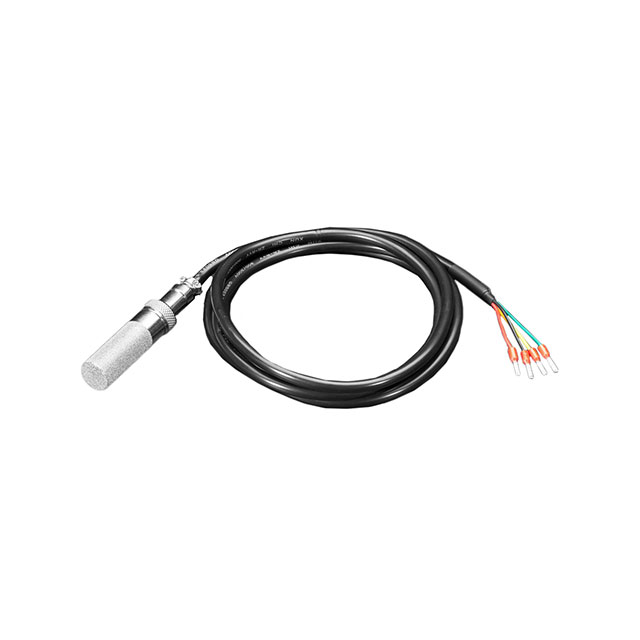

4099
SHT-30 MESH-PROTECTED WEATHER-PR
3721
DIGITAL TEMPERATURE AND HUMIDITY

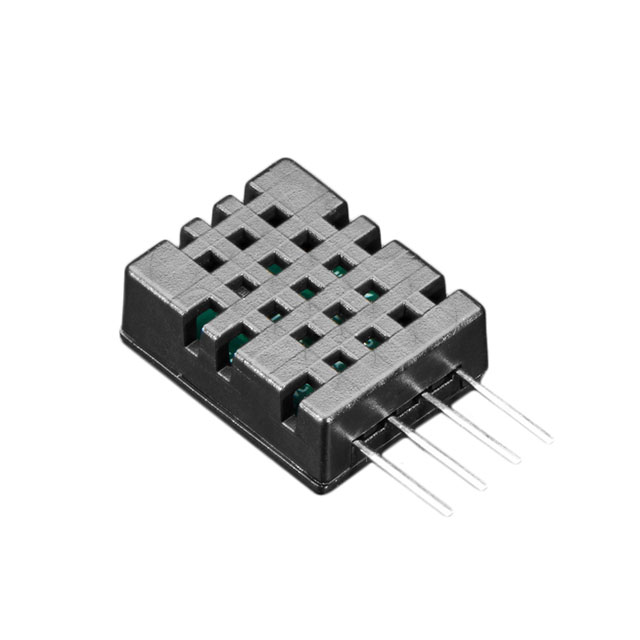

5183
