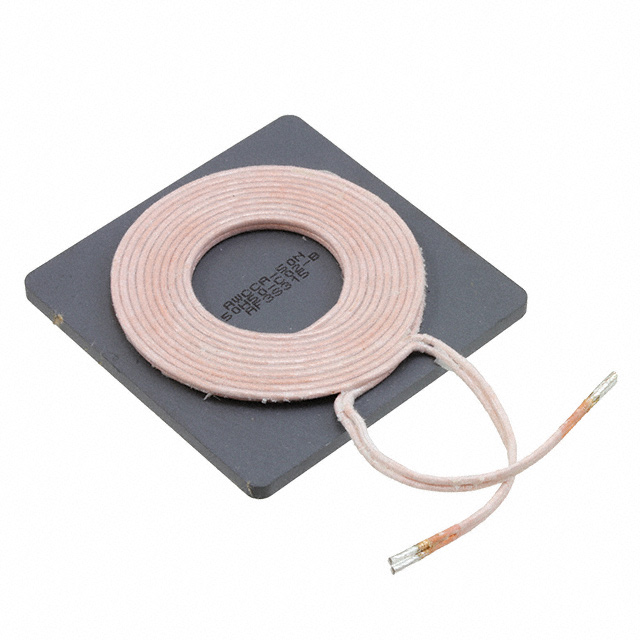

AWCCA-50N50H50-C02-B
RX TX 1 COIL 1 LAYER 6.3UH 10.6AManufacturer: Abracon LLC
Categories: Wireless Charging Coils
Quality Control: Learn More
Abracon LLC's AWCCA-50N50 series wireless charging coil, part number AWCCA-50N50H50-C02-B, is engineered for robust performance as both a receiver and transmitter. This 1 Coil, 1 Layer component features an inductance of 6.3µH with a ±10% tolerance and a low DC resistance of 19mOhm. It is rated for 10.6A continuous current and offers a saturation current (Isat) of 40A, ensuring efficient power transfer under demanding conditions. The coil operates within a frequency range up to its self-resonant frequency of 5.7MHz, with a Q factor of 75 at 100kHz. Its compact dimensions of 50.0mm x 50.0mm x 5.0mm make it suitable for integration into various electronic designs. This component is widely utilized in automotive, consumer electronics, and industrial automation applications requiring reliable wireless power solutions. The operating temperature range is -25°C to 85°C.
Additional Information
Series: AWCCA-50N50RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Box |
| Inductance | 6.3µH |
| Size / Dimension | 1.96"" L x 1.96"" W x 0.19"" H (50.0mm x 50.0mm x 5.0mm) |
| Current Rating (Amps) | 10.6A |
| Function | Receiver, Transmitter |
| Type | 1 Coil, 1 Layer |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) | 19mOhm |
| Q @ Freq | 75 @ 100kHz |
| Frequency - Self Resonant | 5.7MHz |
| Current - Saturation (Isat) | 40A |
