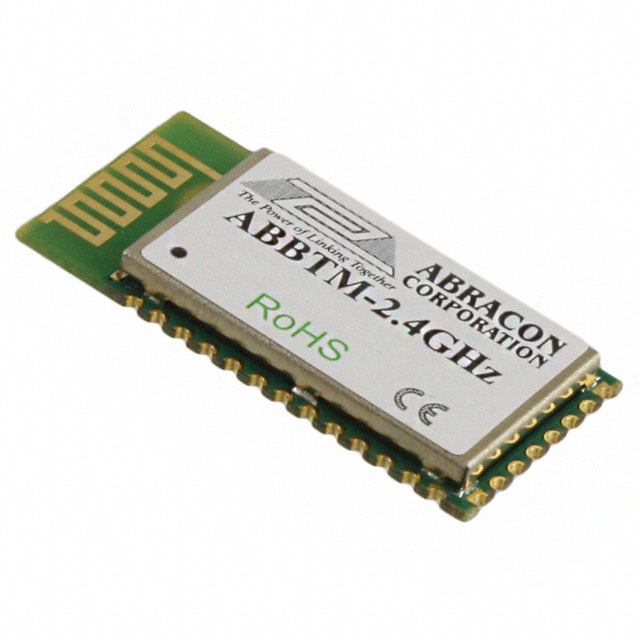

ABBTM-2.4GHZ-T
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Abracon LLC
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Abracon LLC's ABBTM-2-4GHZ-T is a compact Bluetooth v2.0 +EDR, Class 2 transceiver module designed for surface mount applications. Operating in the 2.4GHz ISM band, this module integrates a chip antenna for efficient RF performance. It features a BlueCore4 utilized IC, offering 8MB of flash memory for firmware storage and supporting UART serial interfaces for communication. With a power output of 4dBm and a data rate of up to 115.2kbps, the ABBTM-2-4GHZ-T is suitable for various industrial and consumer electronics applications requiring reliable wireless connectivity. The module operates within a voltage supply range of 2.2V to 4.2V and is specified for an operating temperature range of -40°C to 85°C. It is supplied in a 34-SMD Module package, delivered on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 34-SMD Module |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 8MB Flash |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 4.2V |
| Power - Output | 4dBm |
| Data Rate | 115.2kbps |
| Protocol | Bluetooth v2.0 +EDR, Class 2 |
| Current - Receiving | - |
| Current - Transmitting | - |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | BlueCore4 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
