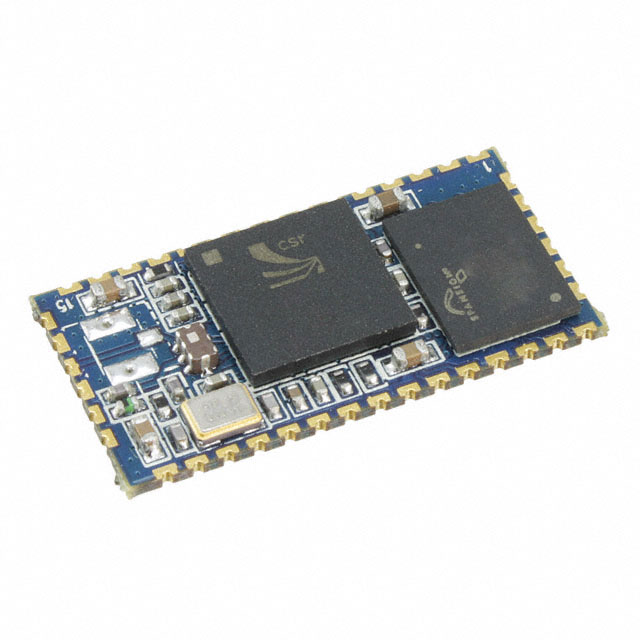

ABBTM-2.4GHZ-52
RF TXRX MODULE BLUETOOTH SMDManufacturer: Abracon LLC
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Abracon LLC's ABBTM-2-4GHZ-52 is a Bluetooth v2.1, Class 2 transceiver module designed for surface mount applications. This 2.4GHz RF module, utilizing the CC2540 IC, offers a transmit power of 4dBm and a receive sensitivity of -93dBm. It supports a dual voltage supply of 1.5V and 3.3V and operates within an industrial temperature range of -40°C to 85°C. The module features 16MB of Flash memory and a UART serial interface for communication. Designed with a 42-SMD Module package, it is supplied in bulk packaging and requires an external antenna. This component is commonly found in wireless connectivity solutions across various industries including consumer electronics, industrial automation, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 42-SMD Module |
| Sensitivity | -93dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 16MB Flash |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V, 3.3V |
| Power - Output | 4dBm |
| Data Rate | - |
| Protocol | Bluetooth v2.1, Class 2 |
| Current - Receiving | - |
| Current - Transmitting | - |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | CC2540 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
