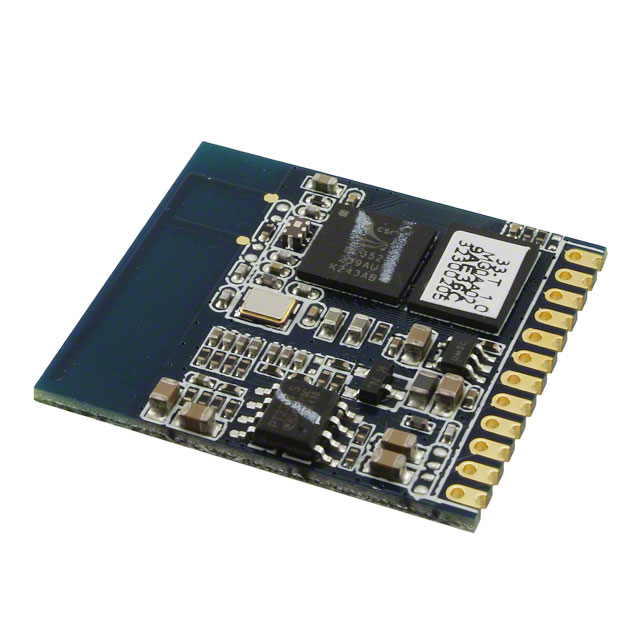

ABBTM-2.4GHZ-33
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Abracon LLC
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Abracon LLC's ABBTM-2-4GHZ-33 is a surface mount Bluetooth v2.1 transceiver module operating at 2.4GHz. This chip-level module integrates an antenna and is built around the EM250 utilized IC, featuring 8MB of Flash memory. Designed for robust performance, it supports a data rate suitable for Bluetooth applications and offers a transmit power of 4dBm. The module operates within a voltage range of 1.7V to 1.9V and supports the UART serial interface for communication. Its operating temperature range is from -40°C to 85°C, making it suitable for demanding environments. The 12-SMD Module package is supplied in bulk packaging. This component is commonly found in industrial automation, consumer electronics, and IoT device applications requiring reliable wireless connectivity.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 12-SMD Module |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 8MB Flash |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 1.9V |
| Power - Output | 4dBm |
| Data Rate | - |
| Protocol | Bluetooth v2.1 |
| Current - Receiving | - |
| Current - Transmitting | - |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | EM250 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART |
| Programmable | Not Verified |
