PRO-OS-313
RF ANT 434MHZ/892MHZ CAB CHAS 3MManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC PRO-OS-313 is an external antenna designed for robust wireless communication. This chassis-mount component features an SMA Male termination and a 3-meter cable. It supports multiple frequency bands crucial for cellular applications, including GSM and UMTS, with center frequencies at 434MHz and 892MHz, extending to 1.85GHz and 2.1GHz. The antenna operates across a wide frequency range, encompassing UHF bands from 434MHz, 863MHz to 960MHz, and 1.71GHz to 1.99GHz, as well as 2.11GHz to 2.17GHz. With a gain of 3dBi, it is well-suited for applications in the automotive, industrial, and telecommunications sectors where reliable connectivity is essential.
Additional Information
Series: External AntennaRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Cable - 3m |
| Packaging | Bulk |
| Mounting Type | Chassis Mount |
| Frequency Range | 434MHz, 863MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.11GHz ~ 2.17GHz |
| Applications | GSM, UMTS |
| Gain | 3dBi |
| Termination | SMA Male |
| Ingress Protection | - |
| Number of Bands | 6 |
| VSWR | - |
| Antenna Type | - |
| Height (Max) | 1.024"" (26.00mm) |
| Return Loss | -7dB |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 434MHz, 892MHz, 1.85GHz, 2.1GHz |
| RF Family/Standard | Cellular |
Request a Quote
Clients Also Buy

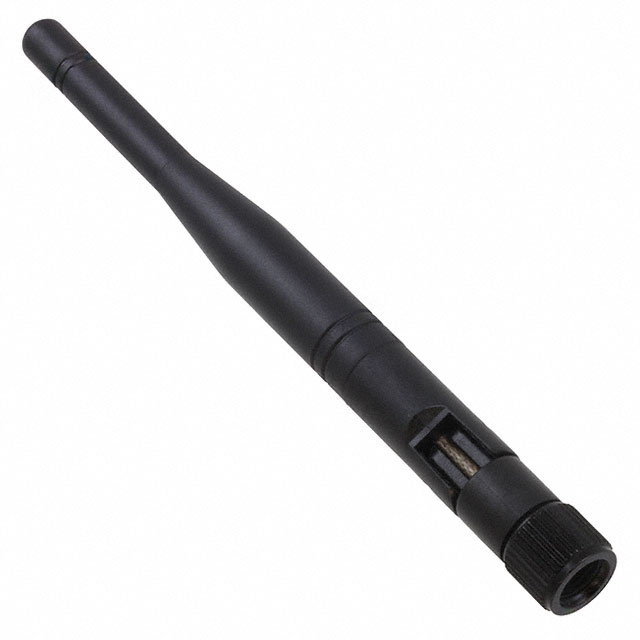

PRO-EX-286
RF ANT 2.4GHZ/5.5GHZ WHIP TILT

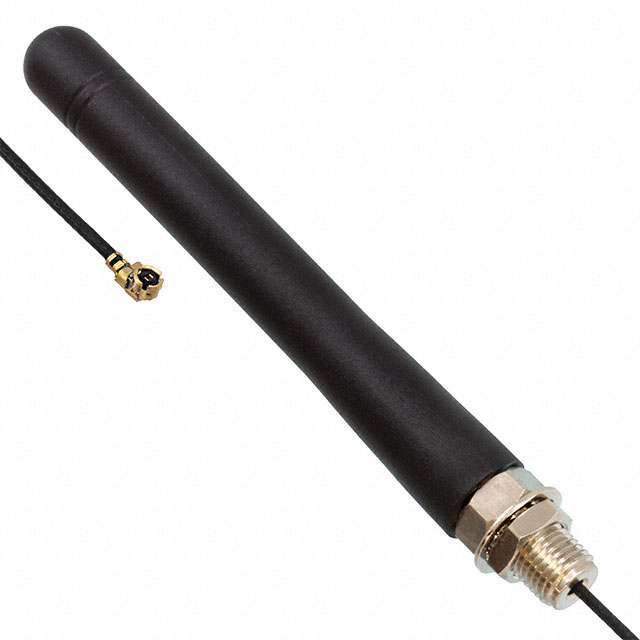

PRO-EX-327
