PRO-OS-238
ANT OUTSIDE 2400 10CM CABLE U.FLManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

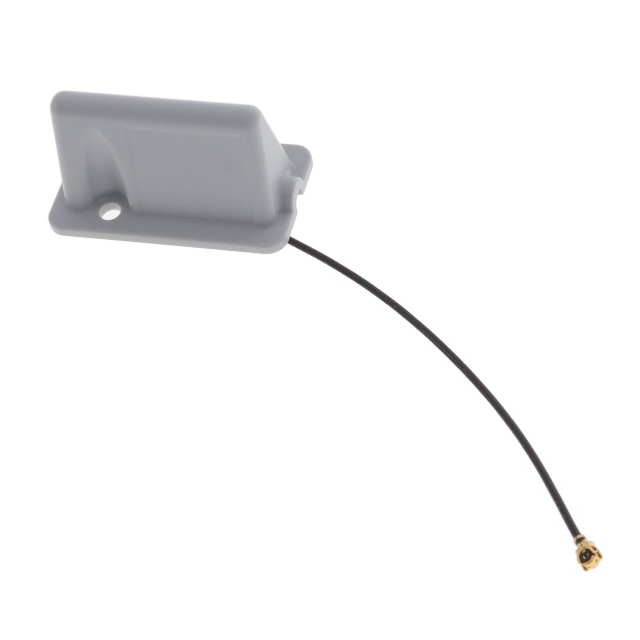

Abracon LLC Outside™ 2400 series RF antenna, part number PRO-OS-238, is designed for 2.4GHz to 2.485GHz ISM band applications including Bluetooth, Wi-Fi, and Zigbee™. This module antenna features a 100mm cable with a U.FL (UMCC) I-PEX MHF termination. It offers a nominal gain of 3dBi and a VSWR of 3, operating within the UHF frequency group. The antenna is suitable for screw mount installations and is typically utilized in wireless communication modules and end-products requiring robust 2.4GHz connectivity. Packaging is provided in bulk.
Additional Information
Series: Outside™ 2400RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Cable - 100mm |
| Packaging | Bulk |
| Mounting Type | Screw Mount |
| Frequency Range | 2.4GHz ~ 2.485GHz |
| Applications | Bluetooth, ISM, Wi-Fi, Zigbee™ |
| Gain | 3dBi |
| Termination | U.FL (UMCC), I-PEX MHF |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 3 |
| Antenna Type | Module |
| Height (Max) | 0.630"" (16.00mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4425GHz |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
