PRO-OB-585
ONBOARD SMD GSM/NB-IOTManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

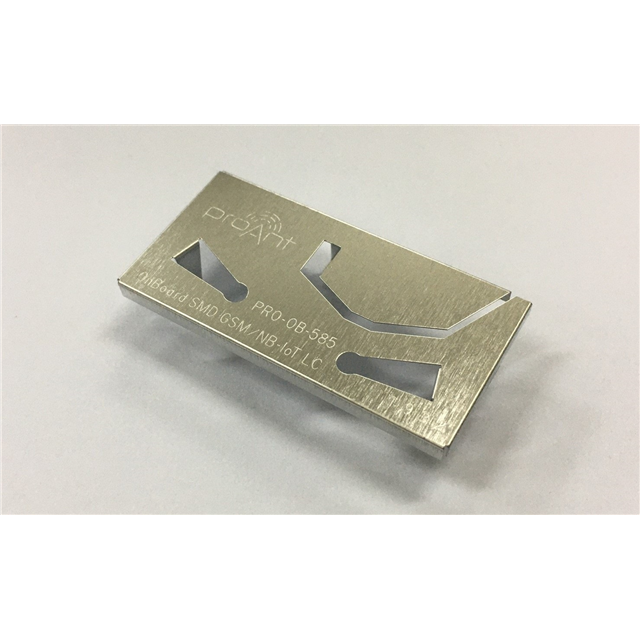

Abracon LLC's PRO-OB-585 embedded antenna is a stamped metal, surface mount component designed for cellular applications. This onboard antenna supports multiple RF standards including EDGE, GPRS, GSM, LTE, and UMTS. It operates across two distinct frequency ranges: 791MHz to 960MHz, with a center frequency of 875.5MHz, and 1.71GHz to 2.17GHz, centered at 1.94GHz. The component features a solder termination and is supplied in Tape & Reel packaging. Its design facilitates integration into compact electronic modules for use in telecommunications infrastructure, IoT devices, and automotive systems. The antenna is characterized by its surface mount capability and a maximum height of 0.394 inches (10.00mm).
Additional Information
Series: Embedded AntennaRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Applications | EDGE, GPRS, GSM, LTE, UMTS |
| Gain | - |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | - |
| Antenna Type | Stamped Metal |
| Height (Max) | 0.394"" (10.00mm) |
| Return Loss | -5dB, -6dB, 1dB |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 875.5MHz, 1.94GHz |
| RF Family/Standard | Cellular |
