PRO-OB-468
RF ANT 850MHZ/900MHZ STAMPED METManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

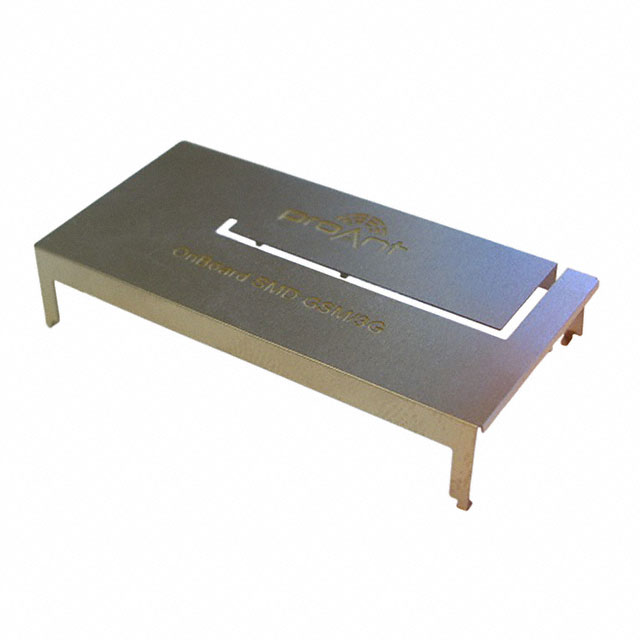

Abracon LLC's PRO-OB-468 is a stamped metal embedded antenna designed for cellular applications. This surface mount component offers dual-band operation, supporting the 824MHz to 960MHz band and the 1.71GHz to 2.17GHz band, with center frequencies at 850MHz, 900MHz, and 2.1GHz. It is optimized for GSM and UMTS standards, making it suitable for mobile communication systems. The compact design, with a maximum height of 10.00mm, is ideal for space-constrained applications. Termination is via solder, and the antenna is supplied in tape and reel packaging.
Additional Information
Series: Embedded AntennaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Applications | GSM, UMTS |
| Gain | - |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | - |
| Antenna Type | Stamped Metal |
| Height (Max) | 0.394"" (10.00mm) |
| Return Loss | -6dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 2.1GHz |
| RF Family/Standard | Cellular |
