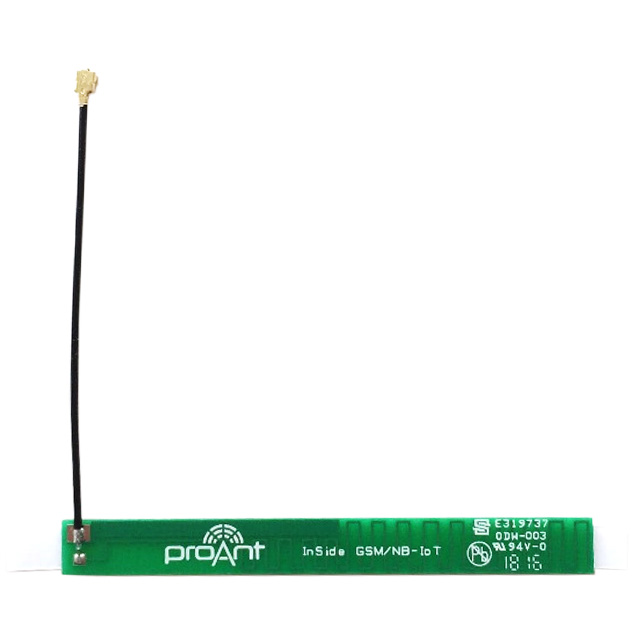

PRO-IS-573
ANT GSM/NB-IOT 60MM MHFManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA GSM PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive
Additional Information
Series: Embedded AntennaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 60mm |
| Packaging | Bag |
| Mounting Type | Adhesive |
| Frequency Range | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz |
| Applications | GSM |
| Gain | 4dBi |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | - |
| Antenna Type | PCB Trace |
| Height (Max) | 0.031"" (0.80mm) |
| Return Loss | -4dB, 5dB |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 875.5MHz, 1.795GHz |
| RF Family/Standard | Cellular |
Request a Quote
Clients Also Buy
PRO-IS-212
RF ANT 915MHZ/1.8GHZ PCB TRACE
PRO-IS-237
RF ANT 2.4GHZ PCB TRACE CAB ADH

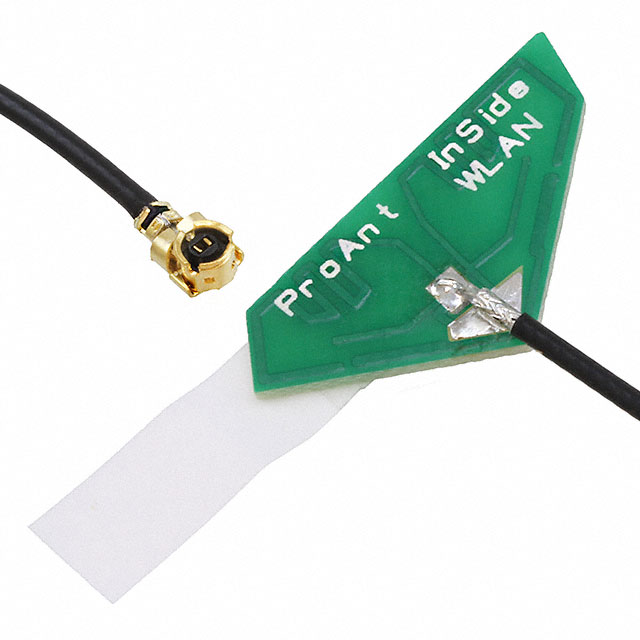

PRO-IS-299
