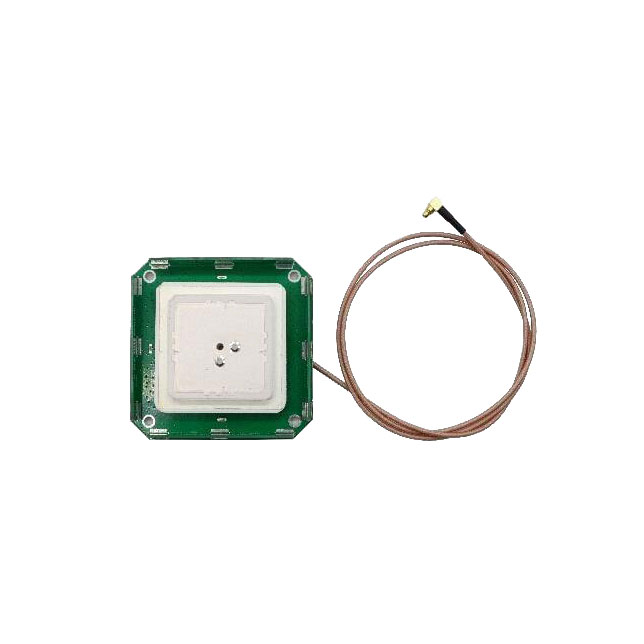

APXG6413GH-0600A
ANTENNA ACTIVE GNSS STACKED PATCManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS Ceramic Patch Screw Mount
Additional Information
Series: APXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | LNA |
| Packaging | Tray |
| Mounting Type | Screw Mount |
| Frequency Range | 1.24GHz ~ 1.25GHz, 1.6GHz ~ 1.61GHz |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS |
| Gain | 1dBi, 4.6dBi, 1.9dBi, 4.7dBi |
| Termination | - |
| Ingress Protection | - |
| Number of Bands | 10 |
| VSWR | - |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.528"" (13.42mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.18GHz, 1.2GHz, 1.21GHz, 1.23GHz, 1.25GHz, 1.27GHz, 1.28GHz, 1.56GHz, 1.58GHz, 1.6GHz |
| RF Family/Standard | Navigation |
Request a Quote
