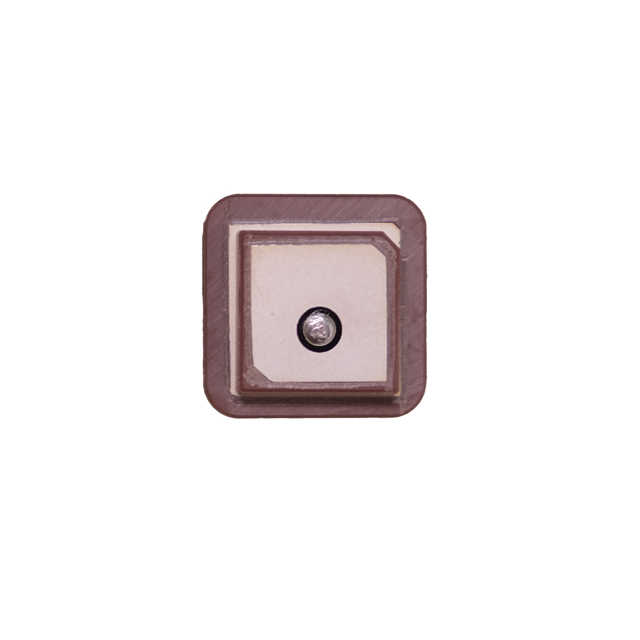

APRE2508GCZ
RF ANT GPS L1+L5/GNSS STACK PATManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch Solder Adhesive, Through Hole
Additional Information
Series: APRERoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Adhesive, Through Hole |
| Frequency Range | 1.164GHz ~ 1.188GHz, 1.563GHz ~ 1.563GHz, 1.574GHz ~ 1.575GHz, 1.563GHz ~ 1.591GHz, 1.597GHz ~ 1.607 |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Gain | 1.3dBi, 3.1dBi, 1.6dBi, 1.6dBi, 4.3dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 5 |
| VSWR | 3 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.315"" (8.00mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz |
| RF Family/Standard | Navigation |
| Grade | Automotive |
| Qualification | AEC-Q200 |
Request a Quote
