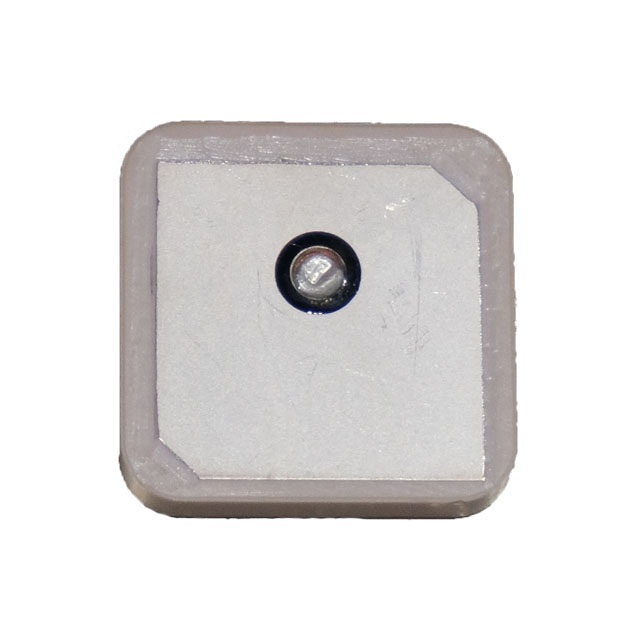

APRA2504F00Z
RF ANT GPS+IRIDIUM CER PATCHManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA GPS Ceramic Patch Solder Adhesive, Through Hole
Additional Information
Series: APRARoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Adhesive, Through Hole |
| Frequency Range | 1.574GHz ~ 1.576GHz, 1.61GHz ~ 1.625GHz |
| Applications | GPS |
| Gain | 2dBi, 3dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 3 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.157"" (4.00mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.6175GHz |
| RF Family/Standard | Navigation |
| Grade | Automotive |
| Qualification | AEC-Q200 |
Request a Quote
