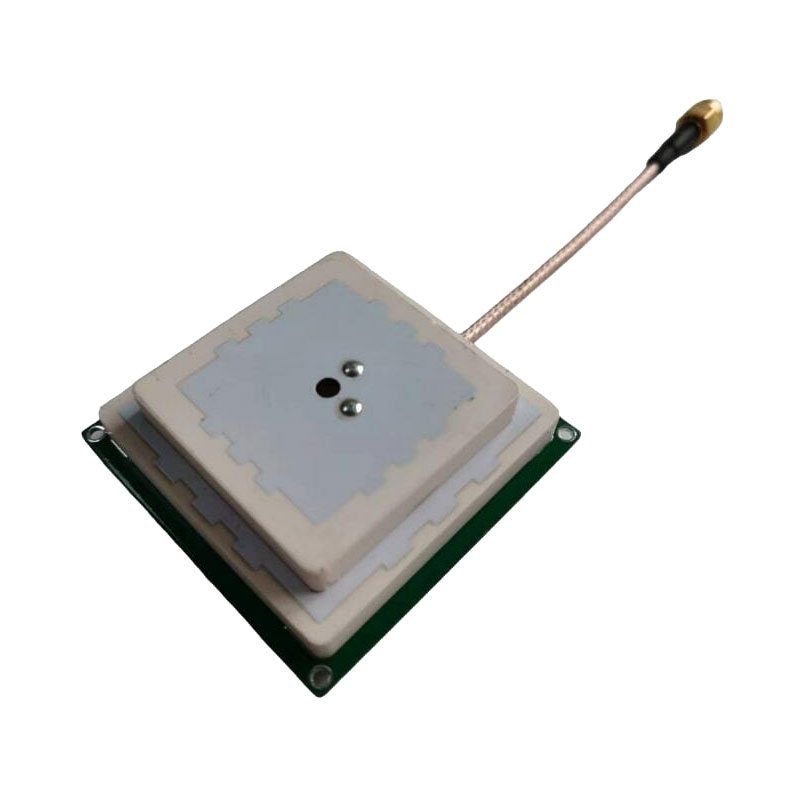

APKG5012GD-0100C
ANTENNA ACTIVE GNSS STACKED PATCManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS Ceramic Patch SMA Male Surface Mount
Additional Information
Series: APKRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 105mm, LNA |
| Packaging | Box |
| Mounting Type | Surface Mount |
| Frequency Range | 1.6GHz ~ 1.61GHz |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS |
| Gain | 3.5dBi, 4dBi |
| Termination | SMA Male |
| Ingress Protection | - |
| Number of Bands | 5 |
| VSWR | 2 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.654"" (16.60mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.18GHz, 1.21GHz, 1.56GHz, 1.58GHz, 1.6GHz |
| RF Family/Standard | Navigation |
