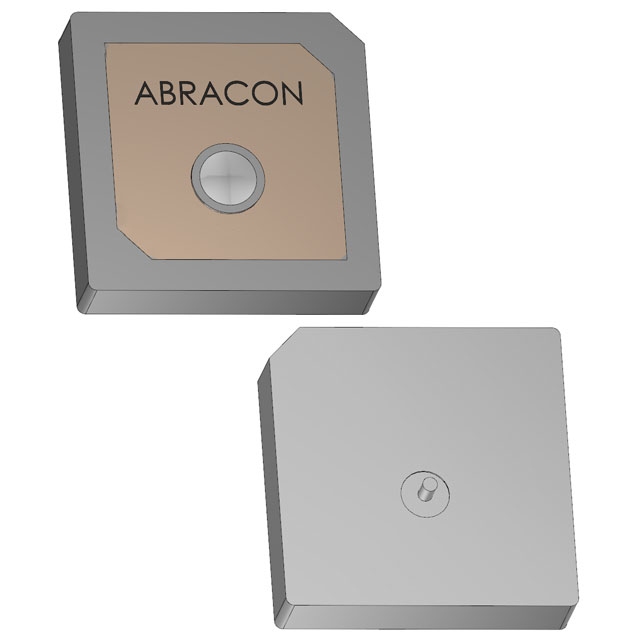

APARM1804-SG3
GNSS/GPS/GLONASS/BEIDOU PTCH ANTManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch Solder Surface Mount
Additional Information
Series: APARMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Surface Mount |
| Frequency Range | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.583GHz ~ 1.589GHz, 1.597GHz ~ 1.607GHz |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Gain | 2dBi, 3dBi, 4dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 4 |
| VSWR | 1.8 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.157"" (4.00mm) |
| Return Loss | -10dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.586GHz, 1.602GHz |
| RF Family/Standard | Navigation |
