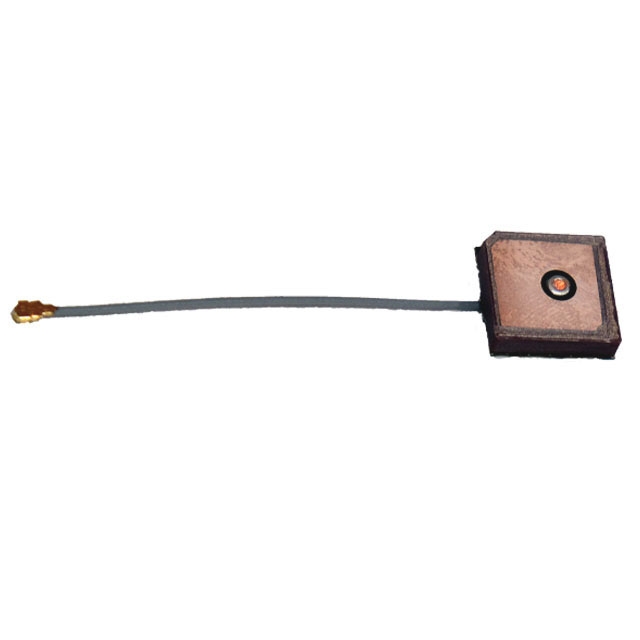

APARC1807A-SG3
RF ANT 1561/1575/1602MHZ PATCHManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch I-PEX Surface Mount
Additional Information
Series: APARRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 68mm |
| Packaging | Box |
| Mounting Type | Surface Mount |
| Frequency Range | 1.561GHz ~ 1.602GHz |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Gain | -6.5dBi, -6.5dBi, -6.0dBi |
| Termination | I-PEX |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 2 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.299"" (7.60mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz |
| RF Family/Standard | Navigation |
