APAMS-120
RF ANT 2.4GHZ/5.8GHZ WHIP STRManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

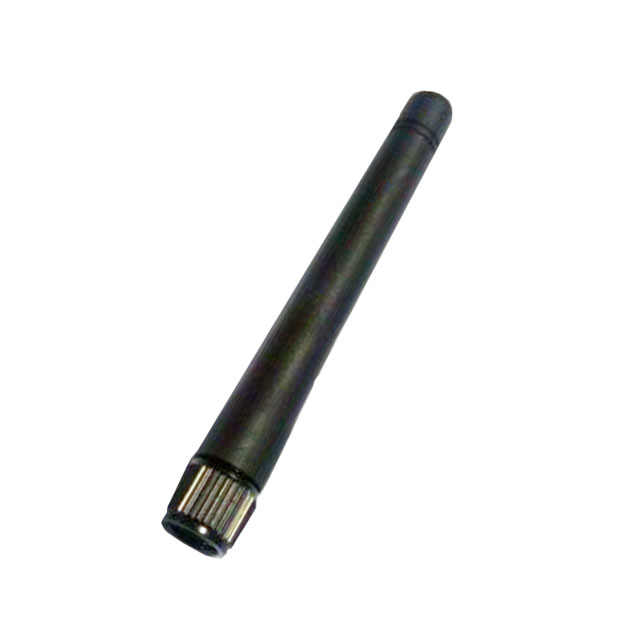

The Abracon LLC APAMS-120 is a dual-band whip antenna designed for the 2.4GHz and 5.8GHz wireless spectrum. Part of the APAMS series, this straight whip antenna features an RP-SMA male connector for direct mounting, simplifying integration into various RF systems. With a gain of 2dBi and a VSWR of 2, it provides efficient signal transmission and reception across its specified bands. The frequency range extends from 2.35GHz to 2.45GHz for Bluetooth and Wi-Fi applications, and 5.7GHz to 5.9GHz for enhanced Wi-Fi performance. This component is commonly utilized in networking equipment, IoT devices, and other wireless communication platforms requiring robust performance in the UHF and SHF frequency groups. The antenna's compact form factor, with a maximum height of 77.00mm, facilitates deployment in space-constrained designs.
Additional Information
Series: APAMSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Mounting Type | Connector Mount |
| Frequency Range | 2.35GHz ~ 2.45GHz, 5.7GHz ~ 5.9GHz |
| Applications | Bluetooth, Wi-Fi |
| Gain | 2dBi |
| Termination | RP-SMA Male |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 2 |
| Antenna Type | Whip, Straight |
| Height (Max) | 3.031"" (77.00mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.8GHz |
| RF Family/Standard | Bluetooth, WiFi |
