APAM1348YD13V2.0
RF ANT 1.575GHZ CER PATCH IPEXManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

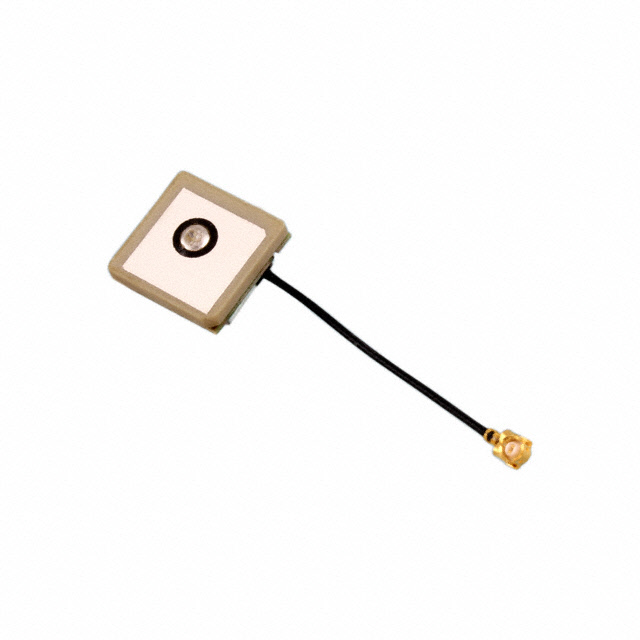

Abracon LLC APAM1348YD13V2-0 is a ceramic patch antenna designed for GPS applications. This surface-mount component operates at a center frequency of 1.575GHz, with a specified frequency range of 1.573GHz to 1.577GHz, falling within the UHF band. It offers a gain of 1dBic and a VSWR of 1.5. The antenna features a U.FL (UMCC), I-PEX MHF1 termination and is suitable for use in navigation systems. The maximum height of the component is 0.220 inches (5.60mm). This part is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Surface Mount |
| Frequency Range | 1.573GHz ~ 1.577GHz |
| Applications | GPS |
| Gain | 1dBic |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 1.5 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.220"" (5.60mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz |
| RF Family/Standard | Navigation |
