APAKM2507S-SGL5
RF ANT GPS L1+L5 STACK CER PATCHManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA GNSS, GPS Ceramic Patch Solder Through Hole
Additional Information
Series: APAKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Frequency Range | 1.175GHz ~ 1.177GHz, 1.574GHz ~ 1.576GHz |
| Applications | GNSS, GPS |
| Gain | -3dBi, 4dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | - |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.295"" (7.50mm) |
| Return Loss | -20dB |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.176GHz, 1.575GHz |
| RF Family/Standard | Navigation |
Request a Quote
Clients Also Buy

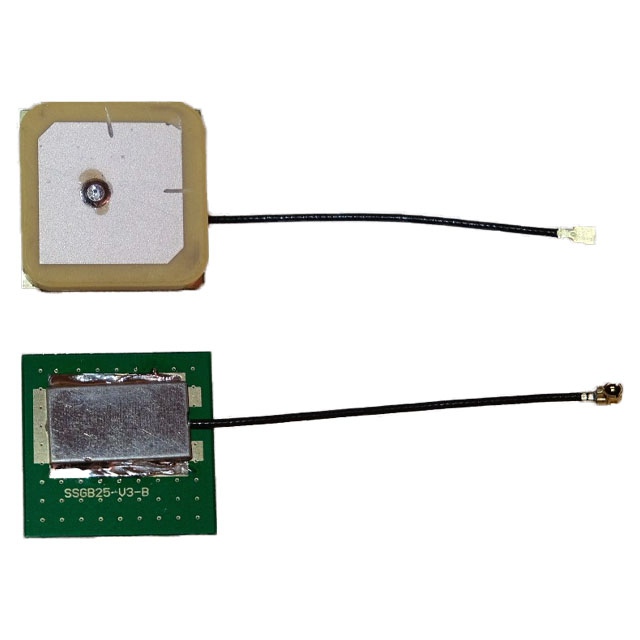

APAKC2506A-SG3
