APAGM2704A-C2G
RF ANT GNSS/GPS/GLONA ACT PATCHManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA GLONASS, GNSS, GPS Ceramic Patch U.FL (UMCC), I-PEX MHF1 Surface Mount
Additional Information
Series: APAGRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 30mm, LNA |
| Packaging | Tray |
| Mounting Type | Surface Mount |
| Frequency Range | 1.574GHz ~ 1.576GHz, 1.6GHz ~ 1.602GHz |
| Applications | GLONASS, GNSS, GPS |
| Gain | 4.5dBi |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 1.02, 1.03 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.157"" (4.00mm) |
| Return Loss | -35.1dB, -37.9dB |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.601GHz |
| RF Family/Standard | Navigation |
Request a Quote
Clients Also Buy

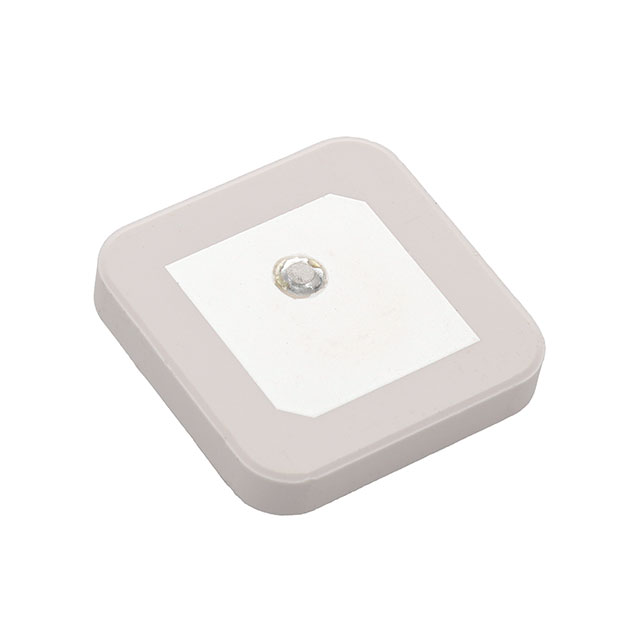

APAGM2525-S2450
