AMCA72-2R470G-S1F-T
RF ANT 2.4GHZ CHIP SOLDER SMDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
Abracon LLC AMCA series antenna, part number AMCA72-2R470G-S1F-T, is a surface-mount chip antenna designed for 2.4GHz wireless applications. This single-band component operates within the UHF frequency group, specifically from 2.37GHz to 2.57GHz, with a center frequency of 2.4GHz. It offers a nominal gain of 2.7dBi and a maximum power handling capability of 3W. The antenna features a low VSWR of 2, indicating efficient impedance matching. Its compact SMD form factor, with a maximum height of 0.039 inches, makes it suitable for space-constrained designs. The termination is solder, and it is supplied on tape and reel for automated assembly. This component is ideal for Bluetooth and WLAN connectivity in various consumer electronics and industrial automation systems.
Additional Information
Series: AMCARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 2.37GHz ~ 2.57GHz |
| Applications | Bluetooth, WLAN |
| Gain | 2.7dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | 2 |
| Antenna Type | Chip |
| Height (Max) | 0.039"" (1.00mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4GHz |
| RF Family/Standard | Bluetooth, WiFi |
| Power - Max | 3 W |
Request a Quote
Clients Also Buy

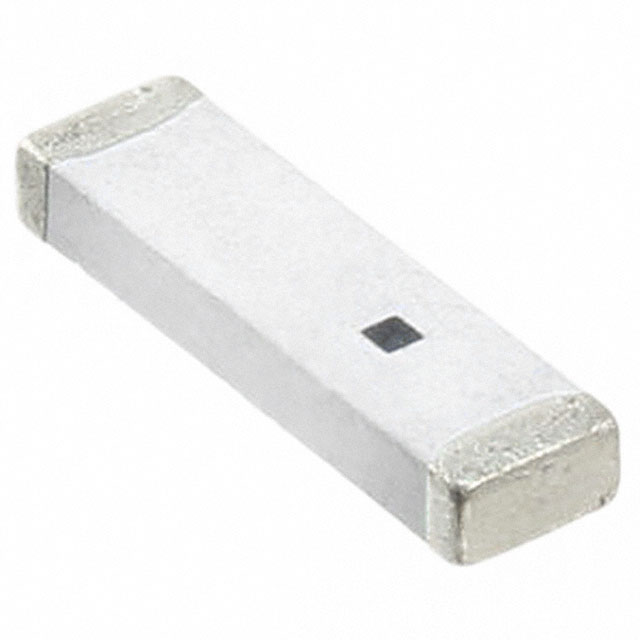

AMCA31-2R450G-S1F-T
