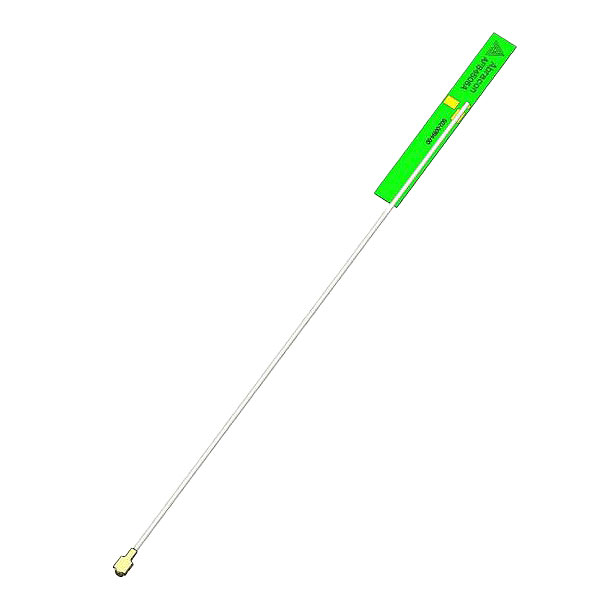

AFB4506A-0100II
RF ANT TRI-BAND WIFI6E 2.4/5/6 GManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ Flat Patch I-PEX MHF1 (U.FL) Adhesive
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 100mm |
| Packaging | Bag |
| Mounting Type | Adhesive |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz |
| Applications | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
| Gain | 1.8dBi, 3.6dBi, 4.3dBi |
| Termination | I-PEX MHF1 (U.FL) |
| Ingress Protection | - |
| Number of Bands | 3 |
| VSWR | 2 |
| Antenna Type | Flat Patch |
| Height (Max) | 0.016"" (0.40mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.53GHz |
| RF Family/Standard | Bluetooth, WiFi |
