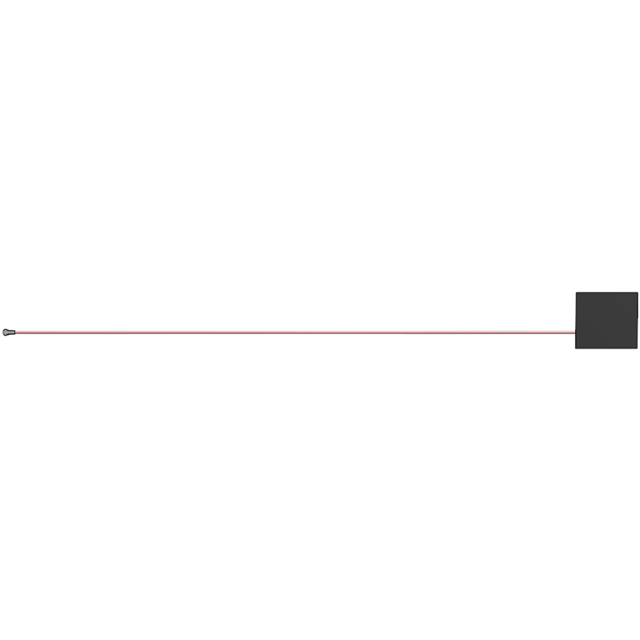

AFAG2220-SW2
RF ANT DUAL BAND WIFI FPC W/IPEXManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Bluetooth, Wi-Fi PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive
Additional Information
Series: AFAGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 220mm |
| Packaging | Bulk |
| Mounting Type | Adhesive |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz |
| Applications | Bluetooth, Wi-Fi |
| Gain | 2dBi |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 2, 2.5 |
| Antenna Type | PCB Trace |
| Height (Max) | - |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz |
| RF Family/Standard | Bluetooth, WiFi |
| Power - Max | 3 W |
Request a Quote
Clients Also Buy
AFAG3030-SG3
ANTENNA GNSS FLEX 100MM IPEX

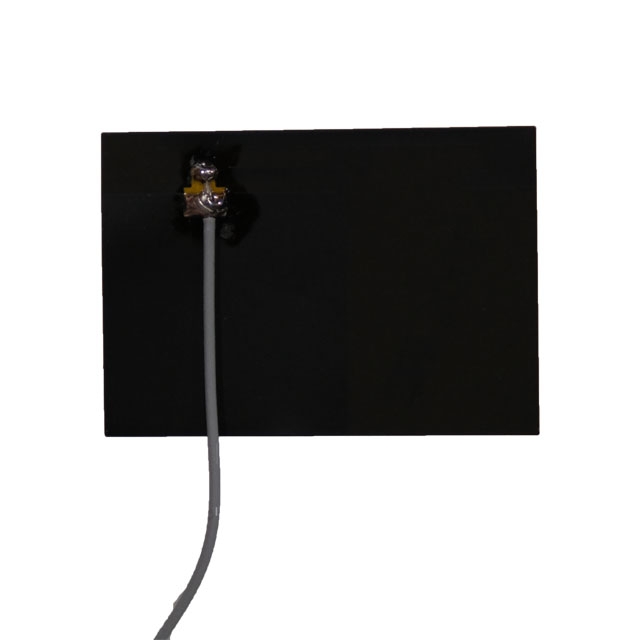

AFAG4330-SG3
RF ANT 1561/1575/1602MHZ FPC

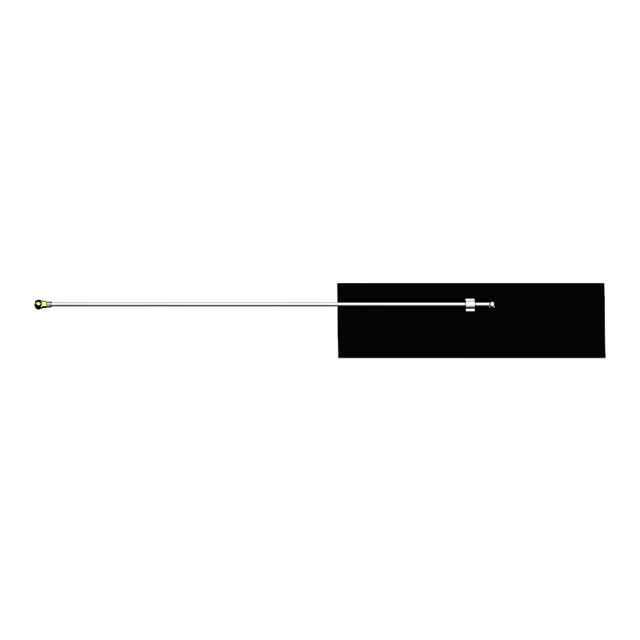

AFAG7020-S824
