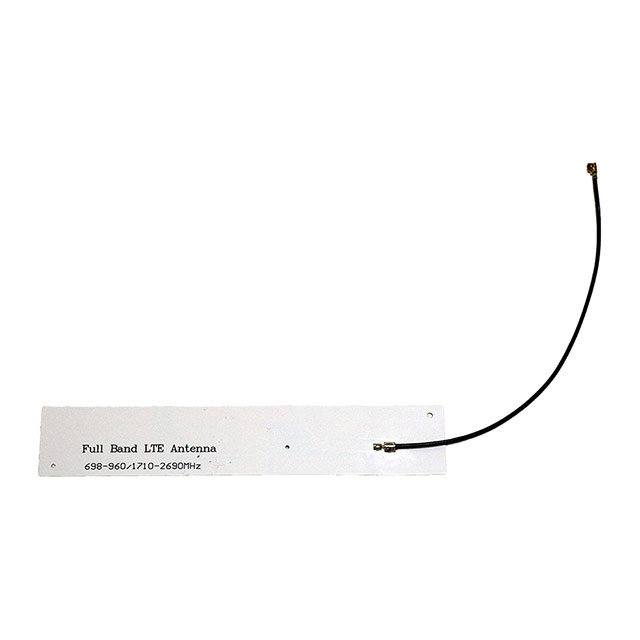

AFAC110020-S698
RF ANT 4G/LTE FLEX PRINTEDManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 4G, LTE PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive
Additional Information
Series: AFACRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 100mm |
| Packaging | Bulk |
| Mounting Type | Adhesive |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz |
| Applications | 4G, LTE |
| Gain | 3dBi |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 3 |
| Antenna Type | PCB Trace |
| Height (Max) | 0.008"" (0.20mm) |
| Return Loss | - |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 829MHz, 2.2GHz |
| RF Family/Standard | Cellular |
Request a Quote
Clients Also Buy

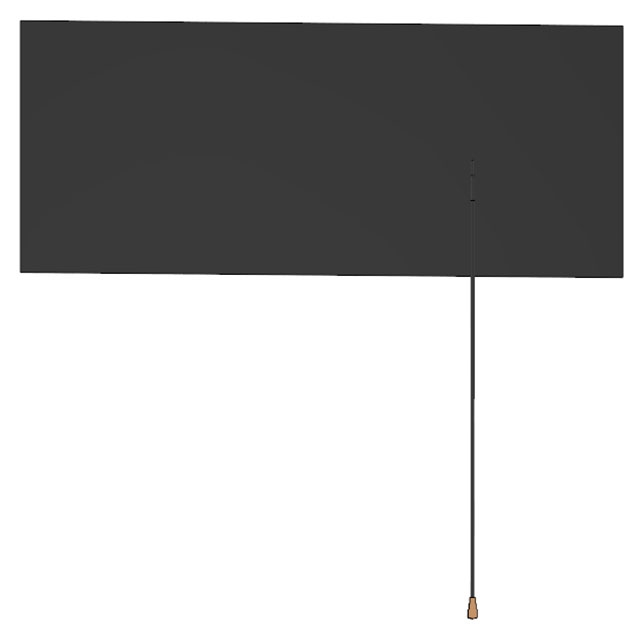

AFAC120050-U6G
RF ANT UWB FLAT PATCH IPEX ADH

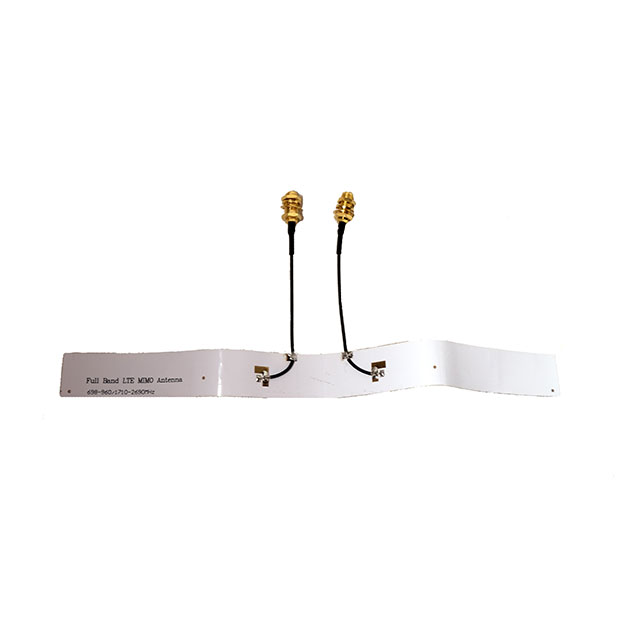

AFAC240020-M698
RF ANT LTE MIMO FPC

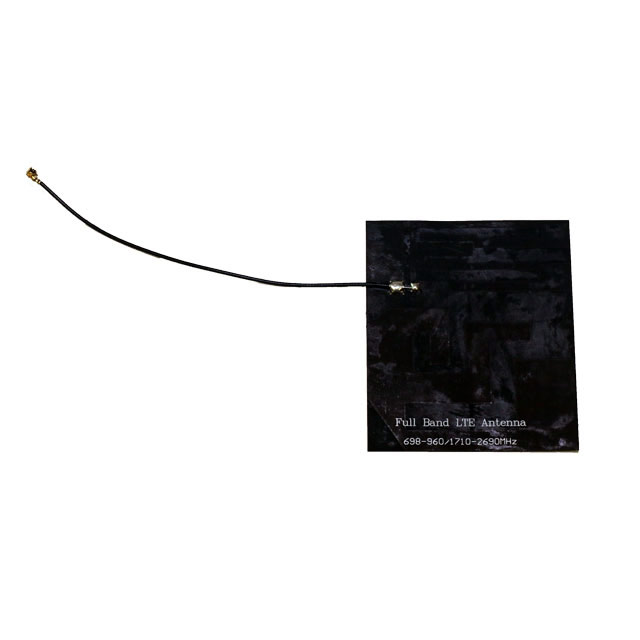

AFAC5867-S698
