AEMF3108A-F

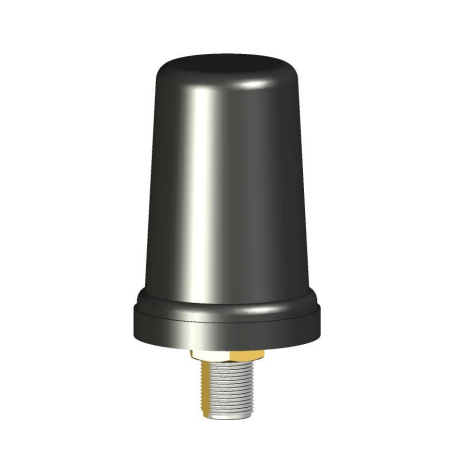

ANTENNA WIFI 6E EXTERNAL DOMEManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ Dome N Type Female Panel Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 200mm |
| Packaging | Bag |
| Mounting Type | Panel Mount |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz |
| Applications | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
| Gain | 3dBi, 6dBi, 5dBi |
| Termination | N Type Female |
| Ingress Protection | - |
| Number of Bands | 3 |
| VSWR | 2 |
| Antenna Type | Dome |
| Height (Max) | 3.150"" (80.00mm) |
| Return Loss | - |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.53GHz |
| RF Family/Standard | Bluetooth, WiFi |
