AECW0801C03S-3000S
ANTENNA GNSS+LTE+WIFIManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi Module SMA Male (3) Screw Mount
Additional Information
Series: AECWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 3m, LNA |
| Packaging | Bulk |
| Mounting Type | Screw Mount |
| Frequency Range | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
| Gain | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi |
| Termination | SMA Male (3) |
| Ingress Protection | IP67 |
| Number of Bands | 5 |
| VSWR | 2, 2.5, 3 |
| Antenna Type | Module |
| Height (Max) | 0.642"" (16.30mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
Request a Quote
Clients Also Buy

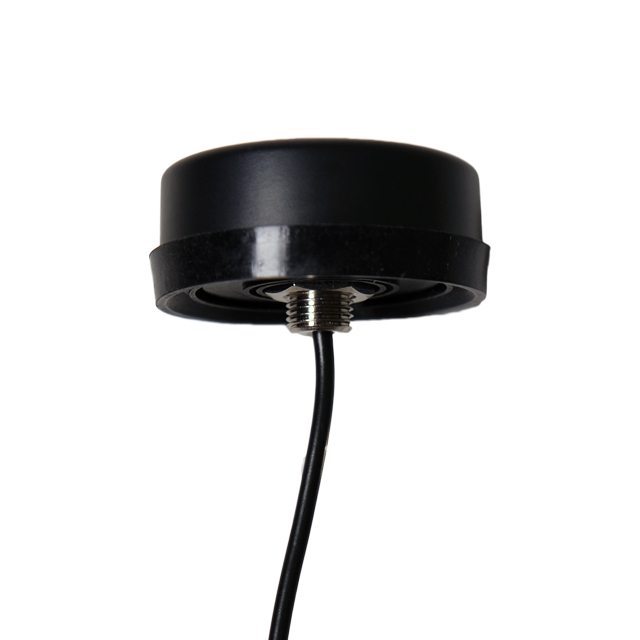

AECW0401G4ZS-3000S
