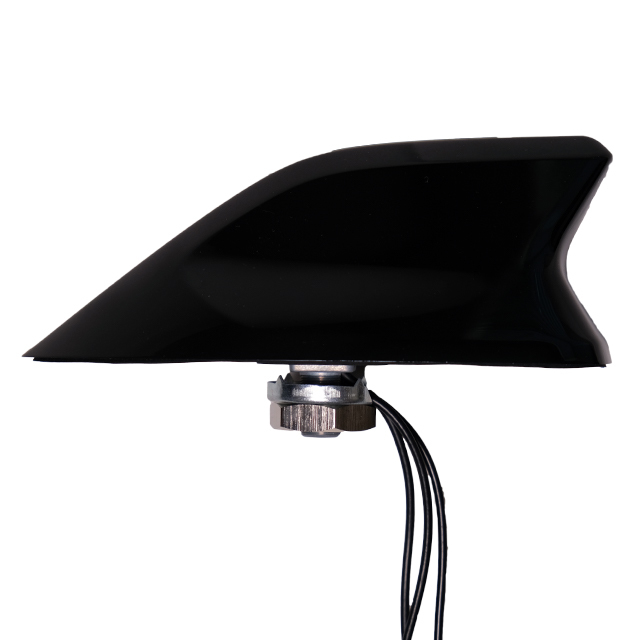

AECS1806C03ZS-3000S
RF ANT 3IN1 LTE/GNSS/WIFI EXT SHManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi Module SMA Male (3) Panel
Additional Information
Series: AECSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 3m, LNA |
| Packaging | Bulk |
| Mounting Type | Panel |
| Frequency Range | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.4835GHz |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
| Gain | 3.5dBi, 2dBic, 2dBi |
| Termination | SMA Male (3) |
| Ingress Protection | IP67 |
| Number of Bands | 3 |
| VSWR | 1.5, 2, 3 |
| Antenna Type | Module |
| Height (Max) | 2.720"" (69.10mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.5815GHz, 2.44175GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
Request a Quote
Clients Also Buy

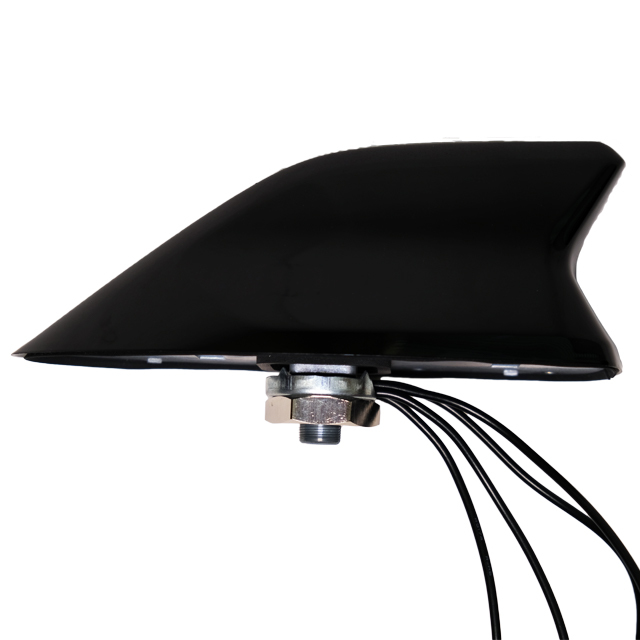

AECS1806D07ZS-3000S
