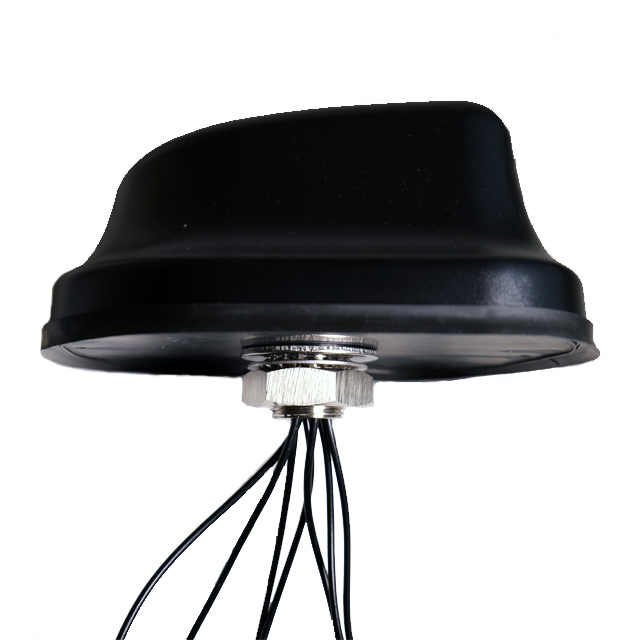

AECR1808A20S-3000S
RF ANT 7IN1 4X5G/ 2XWIFI/ GNSS DManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 4G, 5G, Beidou, GLONASS, GNSS, GPS, LTE, Wi-Fi Dome SMA Male (7) Screw Mount
Additional Information
Series: AECRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 3m |
| Packaging | Bulk |
| Mounting Type | Screw Mount |
| Frequency Range | 1.561GHz ~ 1.606GHz, 2.4GHz ~ 2.4835GHz, 600MHz ~ 6GHz, 4.9GHz ~ 5.925GHz |
| Applications | 4G, 5G, Beidou, GLONASS, GNSS, GPS, LTE, Wi-Fi |
| Gain | 3dBi, 4dBi, 4dBi, 4dBi |
| Termination | SMA Male (7) |
| Ingress Protection | IP67 |
| Number of Bands | 4 |
| VSWR | 2, 2.5, 4 |
| Antenna Type | Dome |
| Height (Max) | 3.346"" (85.00mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.5835GHz, 2.44175GHz, 3.3GHz, 5.4125GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Power - Max | 10 W |
