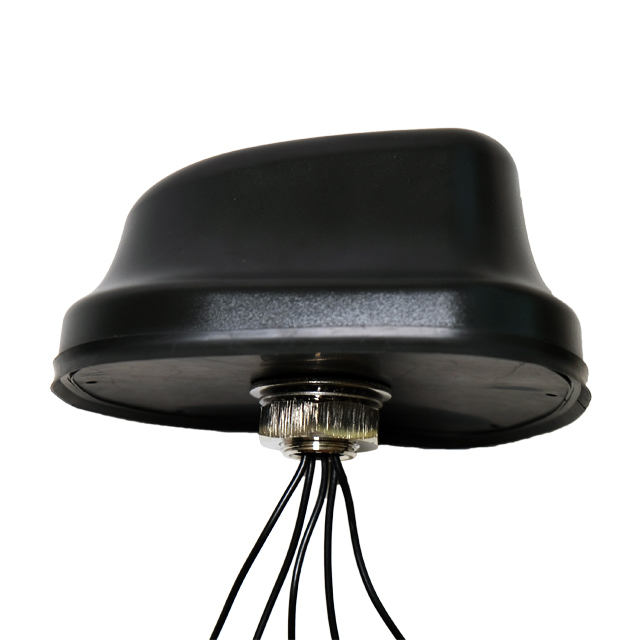

AECR1808A12S-3000S
ANTENNA GNSS+5G MIMO+WIFI MIMOManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi Dome SMA Male (5) Screw Mount
Additional Information
Series: AECRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 3m, LNA |
| Packaging | Bulk |
| Mounting Type | Screw Mount |
| Frequency Range | 698MHz ~ 960MHz, 1.561GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
| Gain | 2dBi, 5dBi, 2dBi, 2dBi, 2dBi, 2dBi |
| Termination | SMA Male (5) |
| Ingress Protection | IP67 |
| Number of Bands | 6 |
| VSWR | 2, 2.5, 3 |
| Antenna Type | Dome |
| Height (Max) | 3.346"" (85.00mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.5835GHz, 2.2GHz, 2.44GHz, 3.35GHz, 5.4125GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
Request a Quote
