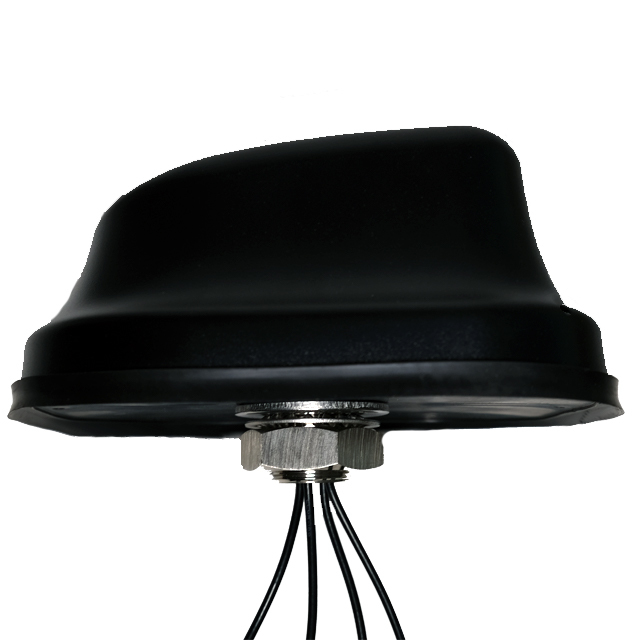

AECR1808A12A-4000S
EXTERNAL MIMO 2X5GNR + MIMO 2XWIManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More
RF ANTENNA 4G, BeiDou, GLONASS, GNSS, GPS, IoT, LTE, M2M, QZSS Module SMA Male Screw Mount
Additional Information
Series: AECRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable - 4m, LNA |
| Packaging | Bulk |
| Mounting Type | Screw Mount |
| Frequency Range | 600MHz ~ 6GHz, 1.561GHz ~ 1.606GHz, 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.925GHz |
| Applications | 4G, BeiDou, GLONASS, GNSS, GPS, IoT, LTE, M2M, QZSS |
| Gain | 3dBi, 4dBi, 4dBi, 4dBi |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Number of Bands | 4 |
| VSWR | 2, 2.5, 4 |
| Antenna Type | Module |
| Height (Max) | 3.346"" (85.00mm) |
| Return Loss | - |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.583GHz, 2.441GHz, 3.3GHz, 5.412GHz |
| RF Family/Standard | Cellular, Navigation |
| Grade | - |
| Power - Max | 10 W |
| Qualification | - |
