AEAGMK148060-S1575
RF ANT MODULE SMA CONN SCREWManufacturer: Abracon LLC
Categories: RF Antennas
Quality Control: Learn More

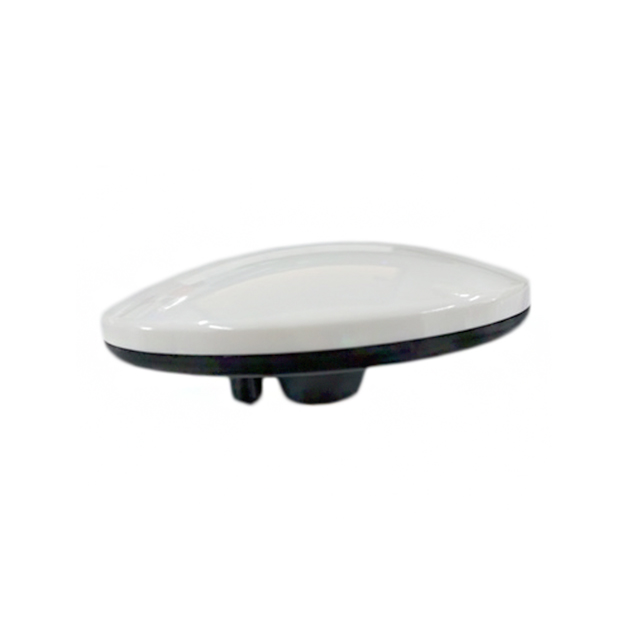

RF ANTENNA Beidou, Galileo, GLONASS, GPS Module TNC-K Screw
Additional Information
Series: AEAGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | LNA |
| Packaging | Bulk |
| Mounting Type | Screw |
| Frequency Range | 1.164GHz ~ 1.3GHz, 1.559GHz ~ 1.615GHz |
| Applications | Beidou, Galileo, GLONASS, GPS |
| Gain | 38dBi |
| Termination | TNC-K |
| Ingress Protection | - |
| Number of Bands | 2 |
| VSWR | 2 |
| Antenna Type | Module |
| Height (Max) | 2.362"" (60.00mm) |
| Return Loss | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.232GHz, 1.587GHz |
| RF Family/Standard | Navigation |
